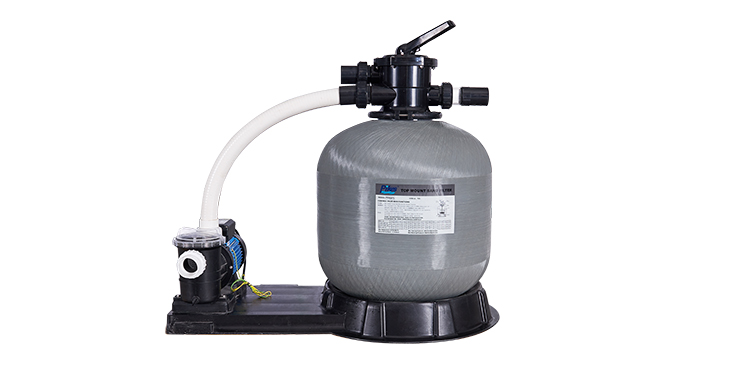

Designed for easy set-up domestic pool, "PSF" series filtration combo offers the right solution for home user who is looking for user-friendly and excellent filtration performance. FSF series filtration combo includes top mount fiberglass filter tank, 6-way multiport valve, swimming pool pumps attached with base.
Technical Characteristics
| Model | Max Flow Rate | Filter | Pump | Valve Connections | Sand(kg) |
| PSF450-6W | 8.10 | P450 | STP75 | 1.5inch(50mm) | 45 |
| PSF525-6W | 11.1 | P525 | STP100 | 1.5inch(50mm) | 85 |
| PSF625-6W | 15.6 | P625 | STP120 | 1.5inch(50mm) | 150 |
| PSF450B-6W | 8.10 | P450 | SQP75 | 1.5inch(50mm) | 45 |
| PSF525B-6W | 11.1 | P525 | SQP100 | 1.5inch(50mm) | 85 |
| PSF625B-6W | 15.6 | P625 | SQP120 | 1.5inch(50mm) | 150 |
Note:Suggested sand weight varies with differences in filter media size, For reference only.

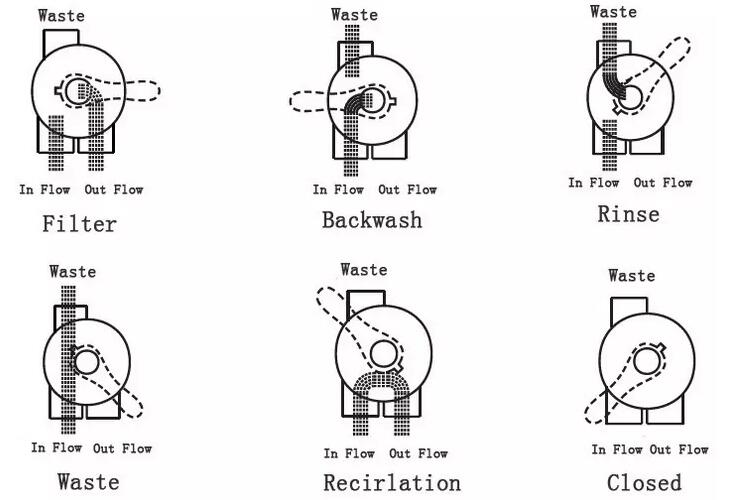

Functions
| Valve Position | Function |
| Filter | Normal Filtration |
| Backwash | Cleaning filter by reversing the flow |
| Rinse | Used after backwash to flush dirt from valve |
| Waste | By-passes filter, used for vacuuming to waste or lowering water level |
| Recirculation | By-passes filter for circulating water to fool |
|
Closed |
Shuts off all flow to filter or pool |
Swimming Pool Sand Filter Pump Features
1) Max operating pressure 36psi/2.5bar
2) Max temperature of 43°C (109F)
3) Universal standard of union connection provided
4) Suggested size of media: 0.5-1.2mm sand
5) Made of fiberglass and polyester.
6) Top diffuser ensures even distribution fo water over the top of the sand bed.
7) Large pressure sand/water drain for rapid winterizing or servicing.
8) UV resistance surface allows the filter to work under direct sunlight.

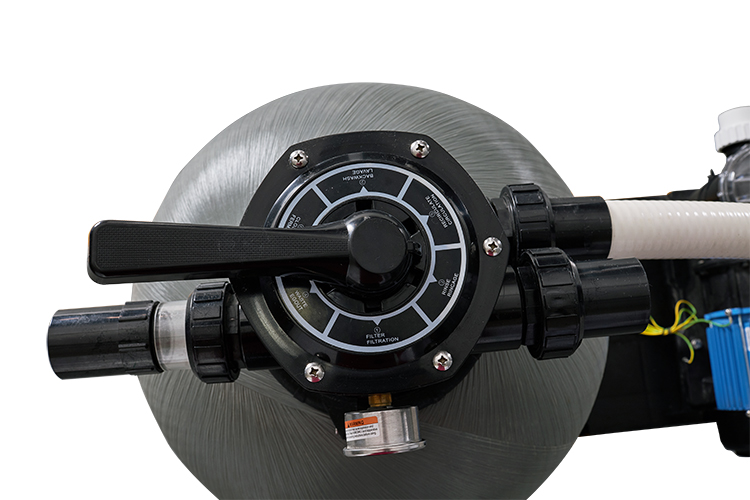

9) Easy to use water drain plug and multi-port valve lets you select any of the valve/filter operation wiht a simple lever-action.
Advantages
