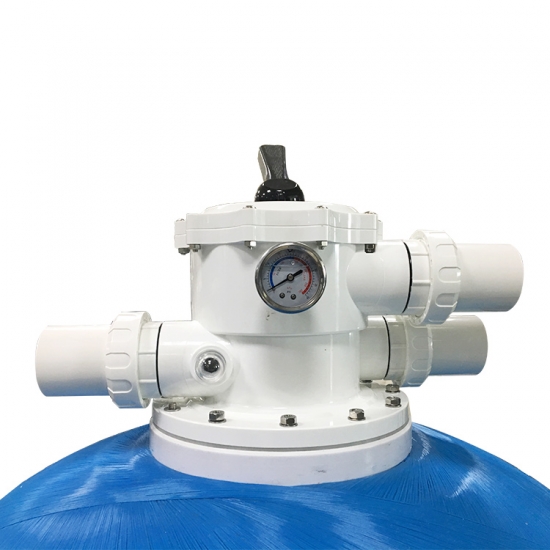

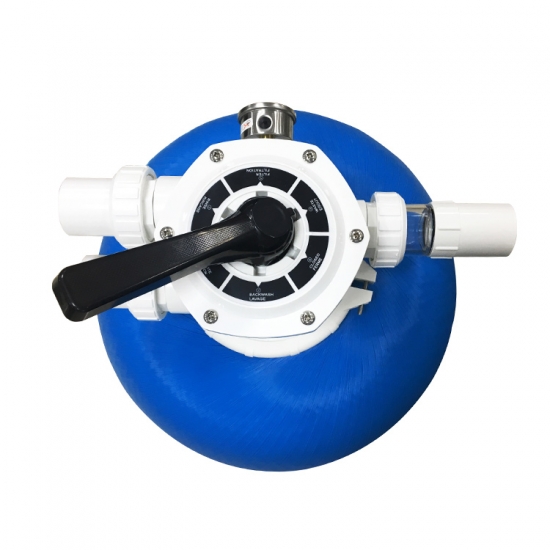

P700B-1400 Top Mount Valve Fiberglass Pool Sand Filter

Top mount fiberglass sand filter P700B-1400 are equipped with a six-position, with 2'' multi-port value, is still the most popular standard in the industry.
  • Item NO.:

    P series
  • Payment:

    T/T Western union LC
  • Product Origin:

    Guangdong China
  • Color:

    grey blue green or customized
  • Shipping Port:

    Guangzhou , Shenzhen
  • Lead Time:

    one week
contact now Send Email
Product Detail

Swimming pool sand filter is still the most popular standard in the industry after all.With UV-resistant surface finish, it is able to operate under prolong sunlight for years of reliability.Swimming Pool sand filter with 2'' multi-port value.



Technical Characteristics
Mode Filter Area (㎡) Vatve Connections
Max Flow Rate Gravel (kg) A mm B mm
P700B 0.40 2.0inch   63mm 21m³/h 215 1150 700
P750 0.45 2.0inch   63mm
23m³/h
300 1180 750
P800 0.50
2.0inch   63mm
25m³/h
355 1310 800
P900 0.64 2.0inch  63mm
31m³/h
470 1380 900
P1000 0.79 2.0inch   63mm
36m³/h
620 1495 1000
P1100 0.96 2.0inch   63mm
42m³/h
800 1580 1100
P1200 1.13 2.0inch   63mm
45m³/h
900 1600 1200
P1400 1.54 2.0inch   63mm
56m³/h
1350 1810 1400




Instruction of install our swimming pool sand filter :
INSTALLATION
Installation had been made simple, the only tools
needed is a screwdriver and pipe sealant for plastic.
Locate the Filter on hard, level surface, preferably in a dry, shaded, and well-ventilated area.
1/ Place the empty tank in position.
2/ Fill the tank with water to the level that covers the laterals

about 1/3 of the tank is recommended. This will avoid damages to the laterals by the force of the sand when pouring into the filter.

Manufacturing factory & Production Process of our swimming pool sand filter
We have a experience and expertise together with our devoted staffs.

Our goal is " Quality is our culture and we will try best to provide the unsurpassed customer service"
