AF Series Cartridge Filter
| OEM | Available |
| Sample | Charge |
| Port | Huangpu, Guangzhou |
| Payment | T/T |
| Place of Origin | China |
| Shipping | Sea freight |
| Supply Ability | 10000 pieces per Month |
- Overview
- Recommended Products
Description:

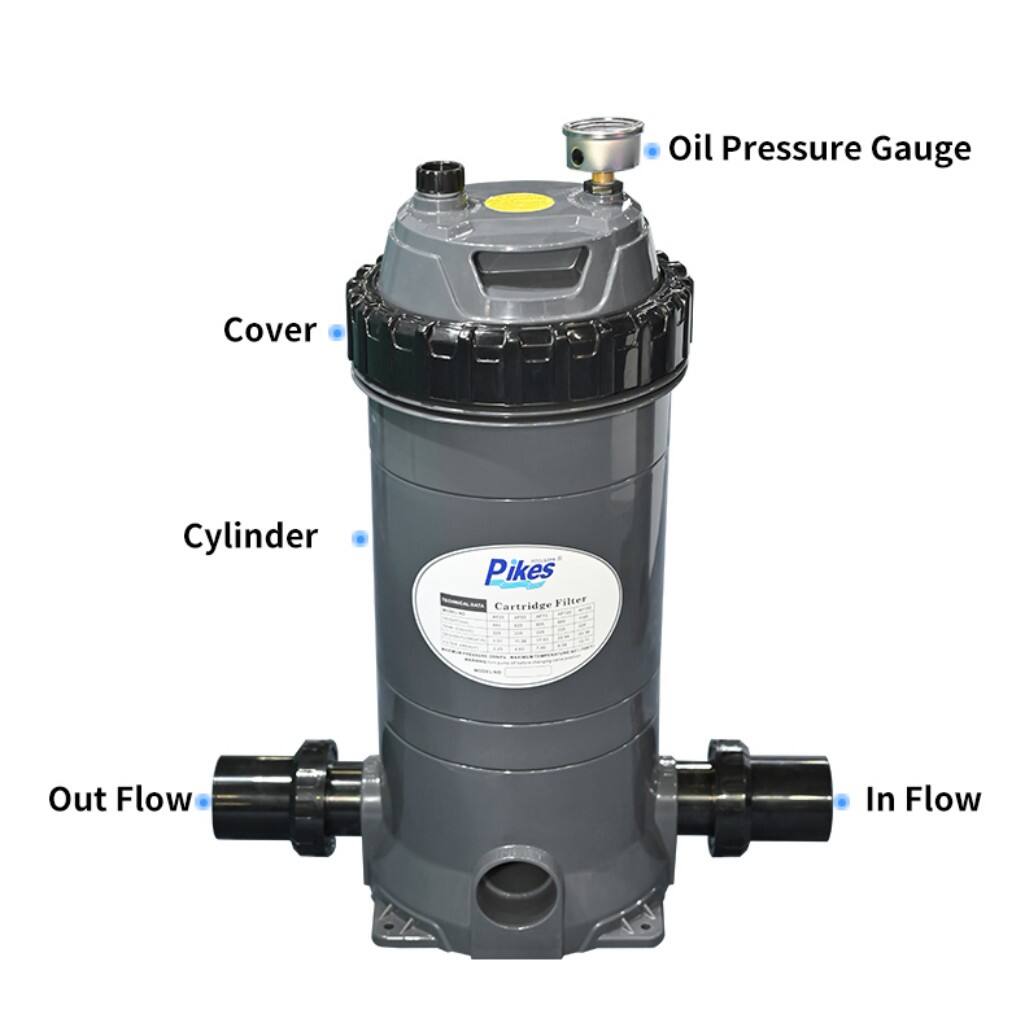

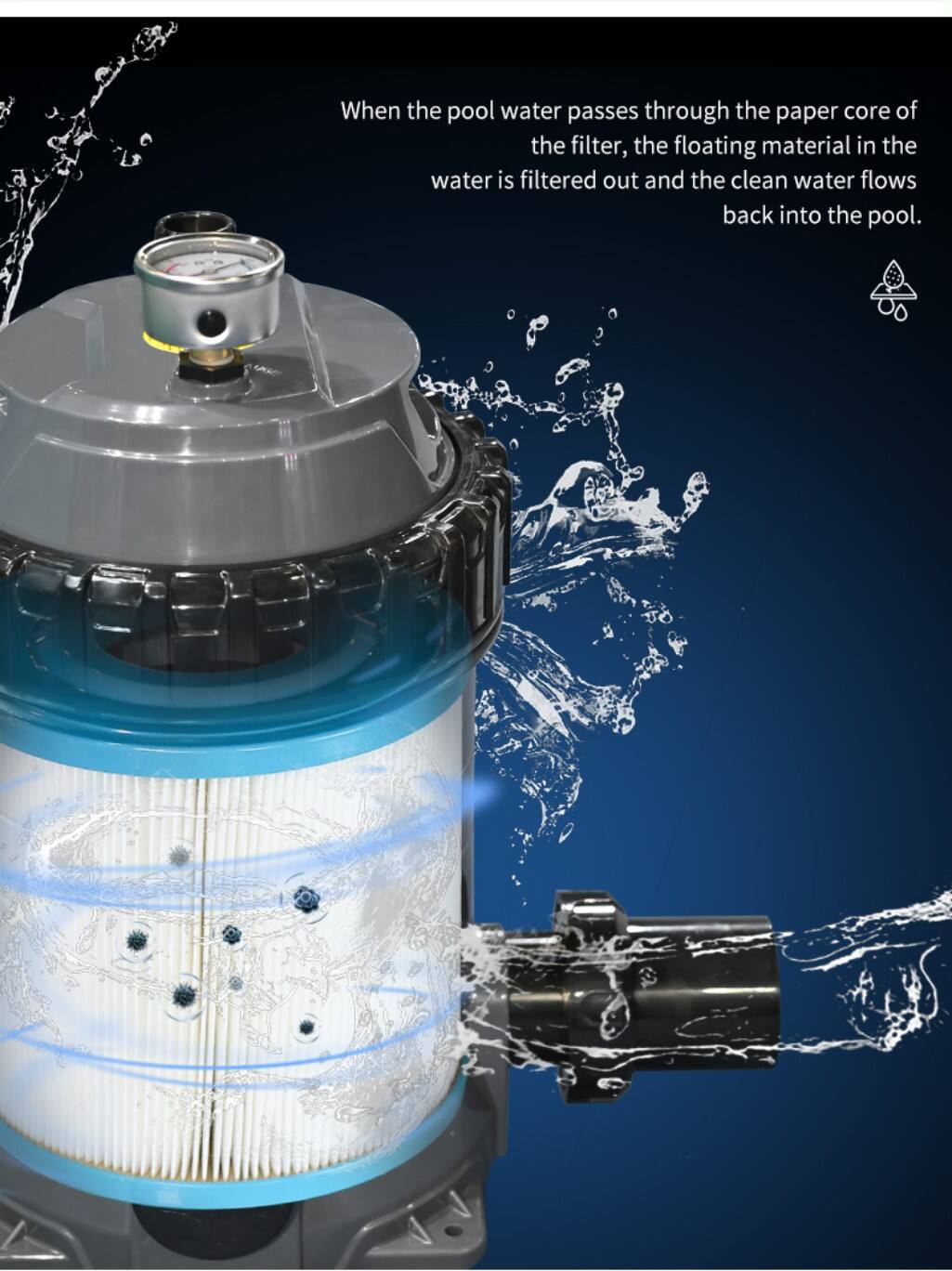

Cartridge filtration is a highly effective and trouble-free method of filtration. Pool water enters the filter and passes through a single polyester element cartridge. Suspended particles are trapped, and the clean water is returned to the pool. As dirt accumulates in the cartridge, water pressure rises and flow decreases. When the pressure reaches an unacceptable level, the cartridge must be removed and cleaned.
Specifications:
| Technical Characteristics | Package Dimensions | |||||||||

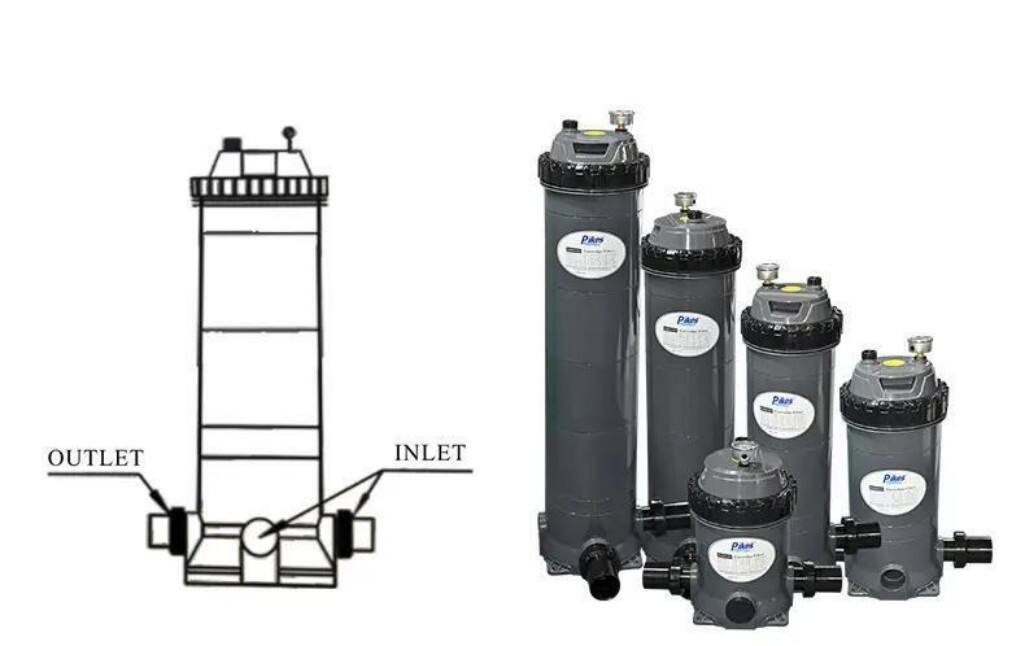

| Model | High (mm) A | High (mm) B | Diameter (mm) C | Filter area (m²) | Flow (m3/h) | Greatest pressure (kpa) | Long mm | Width mm | Hight mm | Weight kg |
| AF25 | 445 | 387 | 225 | 2.25 | 5.5 | 350 | 320 | 320 | 510 | 5.85 |
| AF50 | 625 | 567 | 225 | 4.63 | 11.4 | 350 | 320 | 320 | 690 | 7.35 |
| AF75 | 805 | 747 | 225 | 7 | 17 | 350 | 320 | 320 | 860 | 9.05 |
| AF100 | 985 | 927 | 225 | 9.38 | 22.9 | 350 | 320 | 320 | 1045 | 10.8 |
| AF150 | 1165 | 1107 | 225 | 13.72 | 33.4 | 350 | 320 | 320 | 1220 | 12.6 |
Competitive Advantage:
Long service life
Low maintenance cost
Excellent filtration performance
Strong chemical resistance
Cost-effective solution for pool water treatment
Applications:
Residential swimming pool water filtration
Commercial swimming pool circulation system
SPA and hot tub filtration
Above-ground and in-ground swimming pools
Pool equipment room filtration system
Water treatment for fountains and water features
