Description:

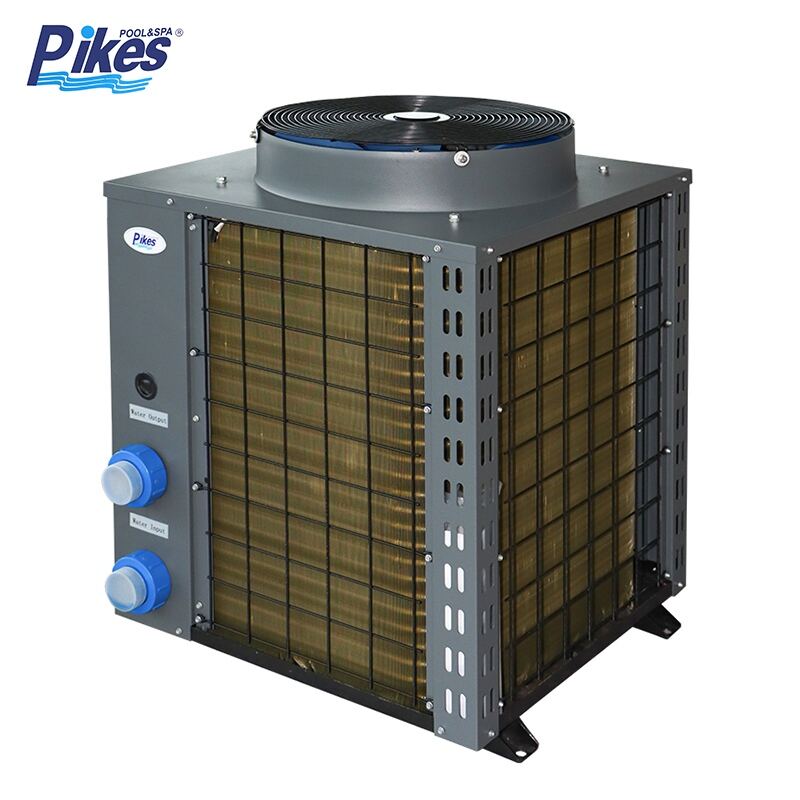

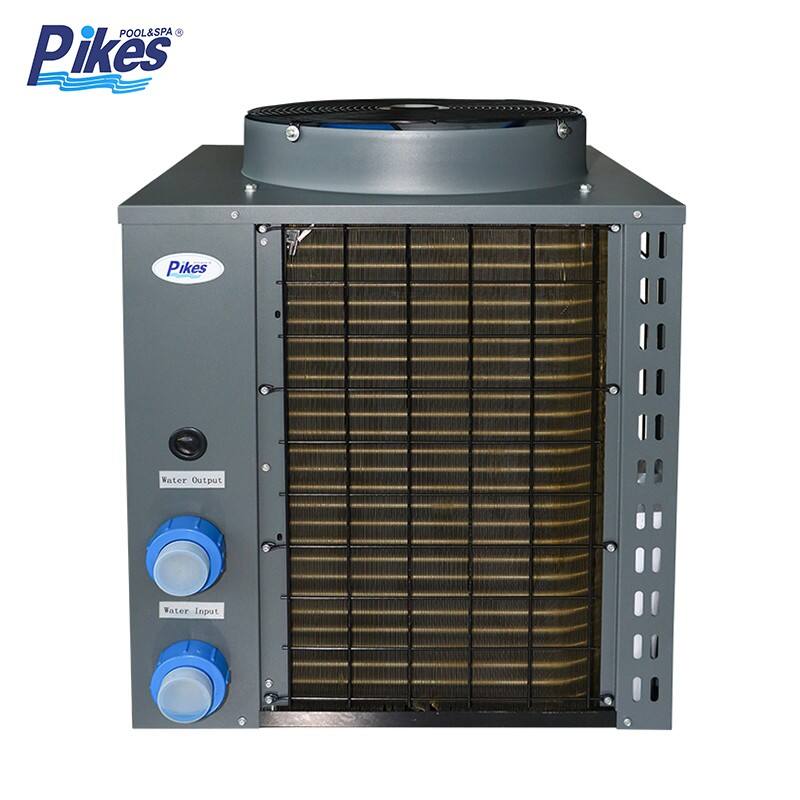

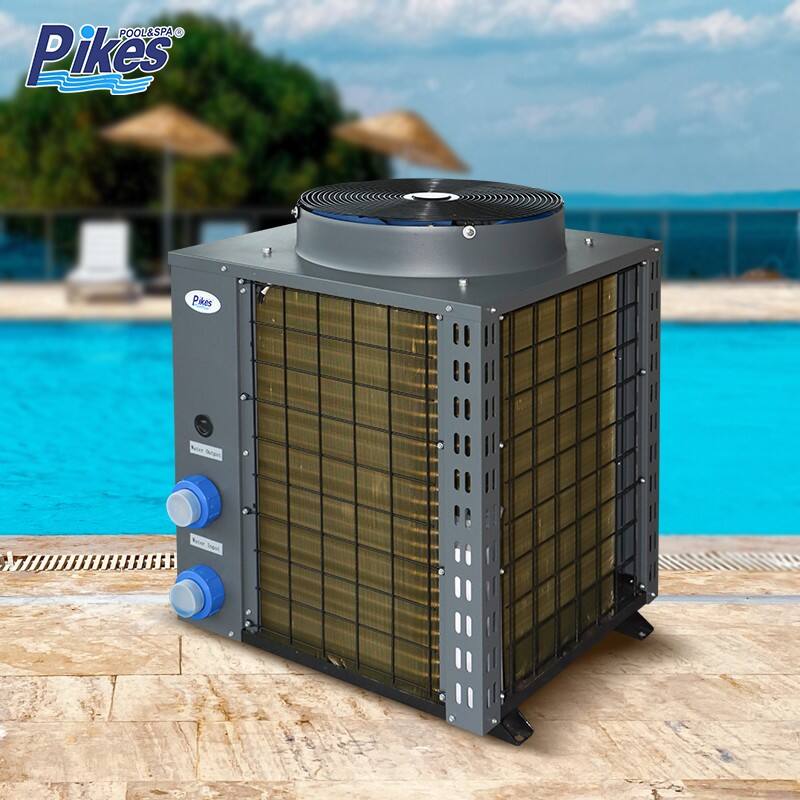

This swimming pool heat pump is designed to provide efficient and stable pool water heating for both residential and commercial swimming pools. Using advanced air source heat pump technology, it delivers high energy efficiency with low operating costs. Suitable for indoor and outdoor pools, it ensures precise temperature control, extends the swimming season, and offers a reliable, eco-friendly pool heating solution.
Technical Characteristics
Model No |
MD20D |
MD30D |
MD50D |
MD100D |
MD150D |
MD200D |
||
Horsepower |
2HP |
3HP |
5HP |
10HP |
15HP |
20HP |
||
Rated Heating Capacity |
kw |
10 |
15 |
28 |
50 |
80 |
110 |
|
Rated Input Power |
kw |
1.66 |
2.48 |
4.64 |
8.3 |
13.3 |
18.2 |
|
Rated Input Current |
A |
7.5 |
11.3 |
8.8 |
15.7 |
25.2 |
34.6 |
|
COP Rated COP |
W/W |
6.02 |
6.05 |
6.03 |
6.06 |
6.04 |
6.04 |
|
Rated Power Supply |
/ |
220V-50Hz |
380V 3N-50Hz |
|||||
Operation Control |
/ |
Micro- computer control, wire controller control, remote control, operation status display, fault alarm, etc. |
||||||

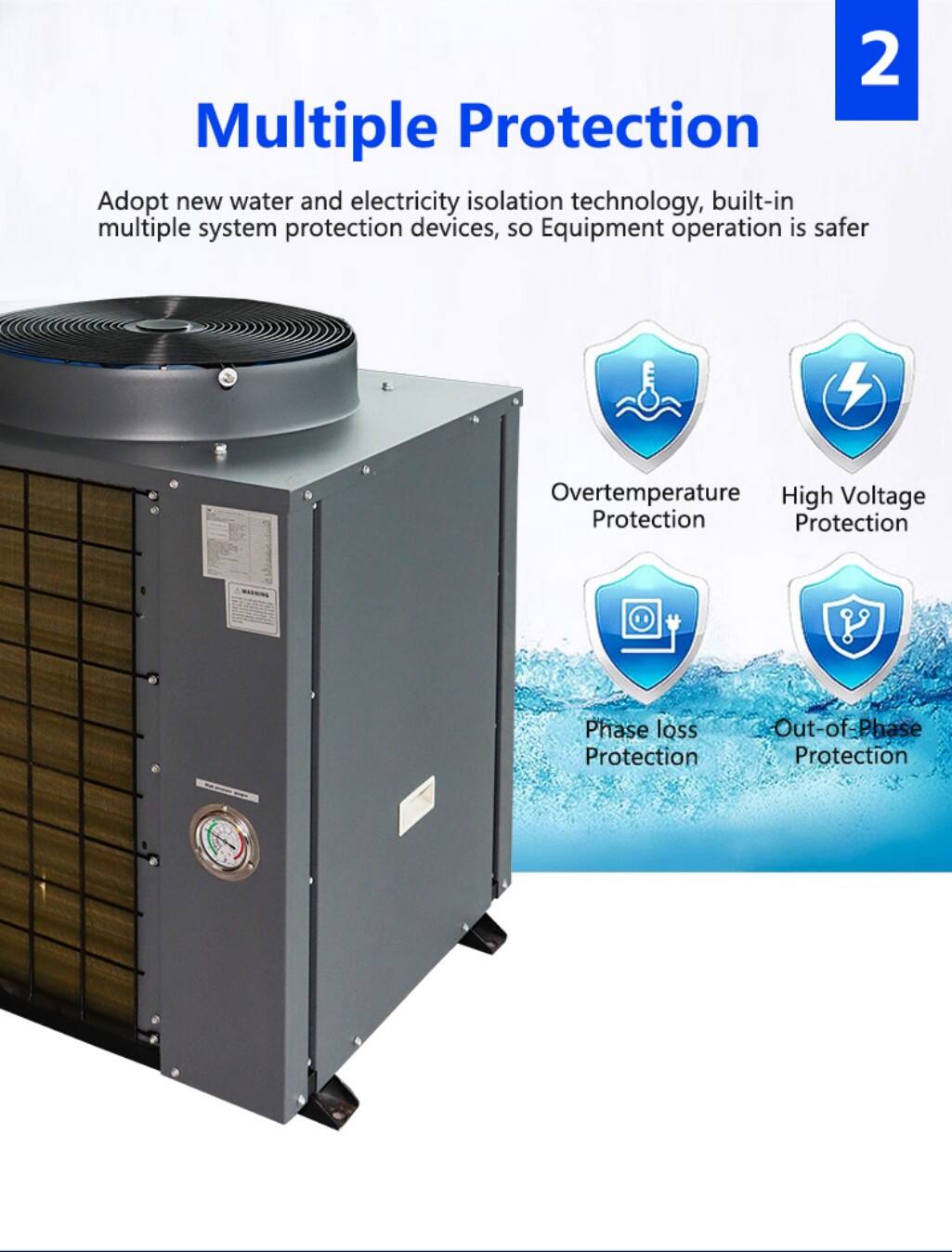

Safety Devices |
/ |
Automatic power -on/off, high -low pressure switch, anti-freeze protection device, over - current profection device, power phase sequence protection device, etc. |
||||||
Refrigerant |
/ |
R410a |
||||||
Air-side |
Fin heat exchanger |
|||||||
Water - side |
Titanium tube heat exchanger |
|||||||
Rated Water Outlet Temperature |
°C |
28 |
||||||
Maximum Water Outlet Temperature |
°C |
35 |
||||||
Water system |
Rated Water Flow |
m³/h |
4.3 |
6.45 |
12.04 |
21.5 |
34.4 |
47.3 |
Water-side Resistance |
kPa |
30 |
32 |
33 |
35 |
39 |
42 |
|
Water-side Heat Exchange |
/ |
PVC Titanium tube heat exchanger |
||||||
Water-sidePressure Bearing |
Mpa |
1 |
1 |
1 |
1 |
1 |
1 |
|
Water Inlet and Outlet Pipe |
/ |
PVC50 |
PVC50 |
PVC50 |
PVC50 |
PVC63 |
PVC75 |
|
Noise |
dB(A) |
46 |
47 |
48 |
52 |
55 |
56 |
|
Rated working conditions: outdoor dry - bulb/wet - bulb temperature is 20°C/15°C, and the inlet/outlet water temperature is 26°C/28C. | ||||||||
Applications:
Swimming pool water heating and temperature control
Residential and commercial swimming pools
Hotel, resort, and spa pool heating systems
Indoor and outdoor swimming pools
Energy-saving pool heating solutions
Pool water temperature management
