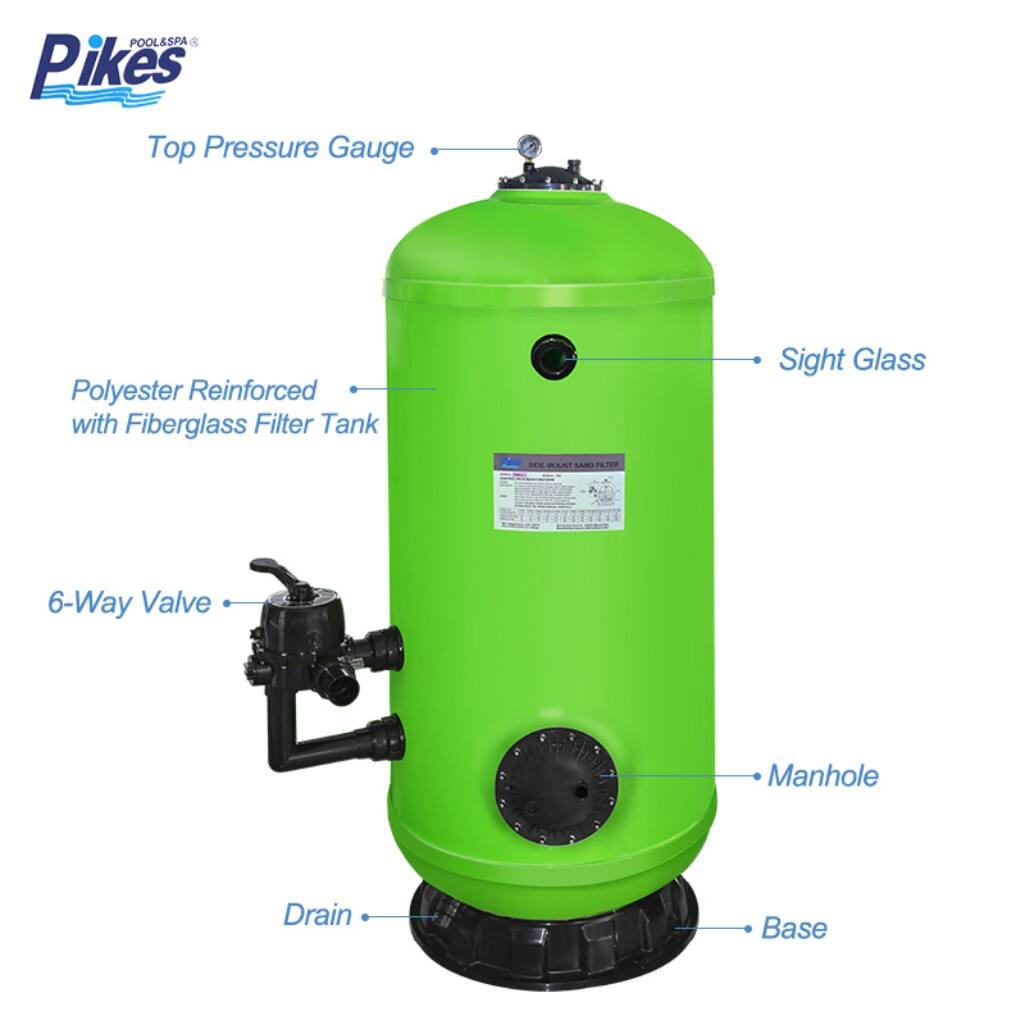

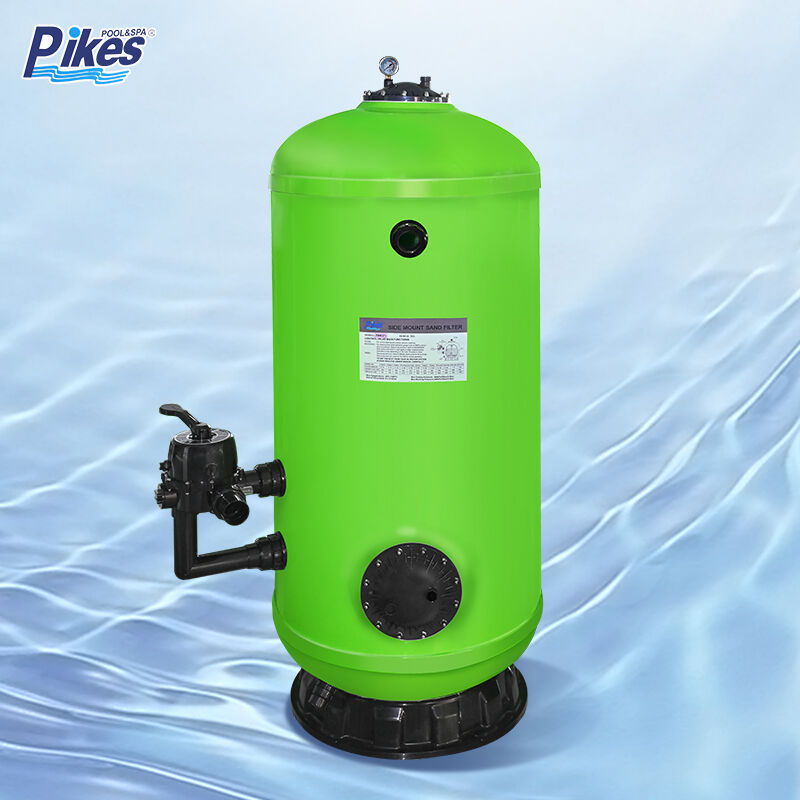

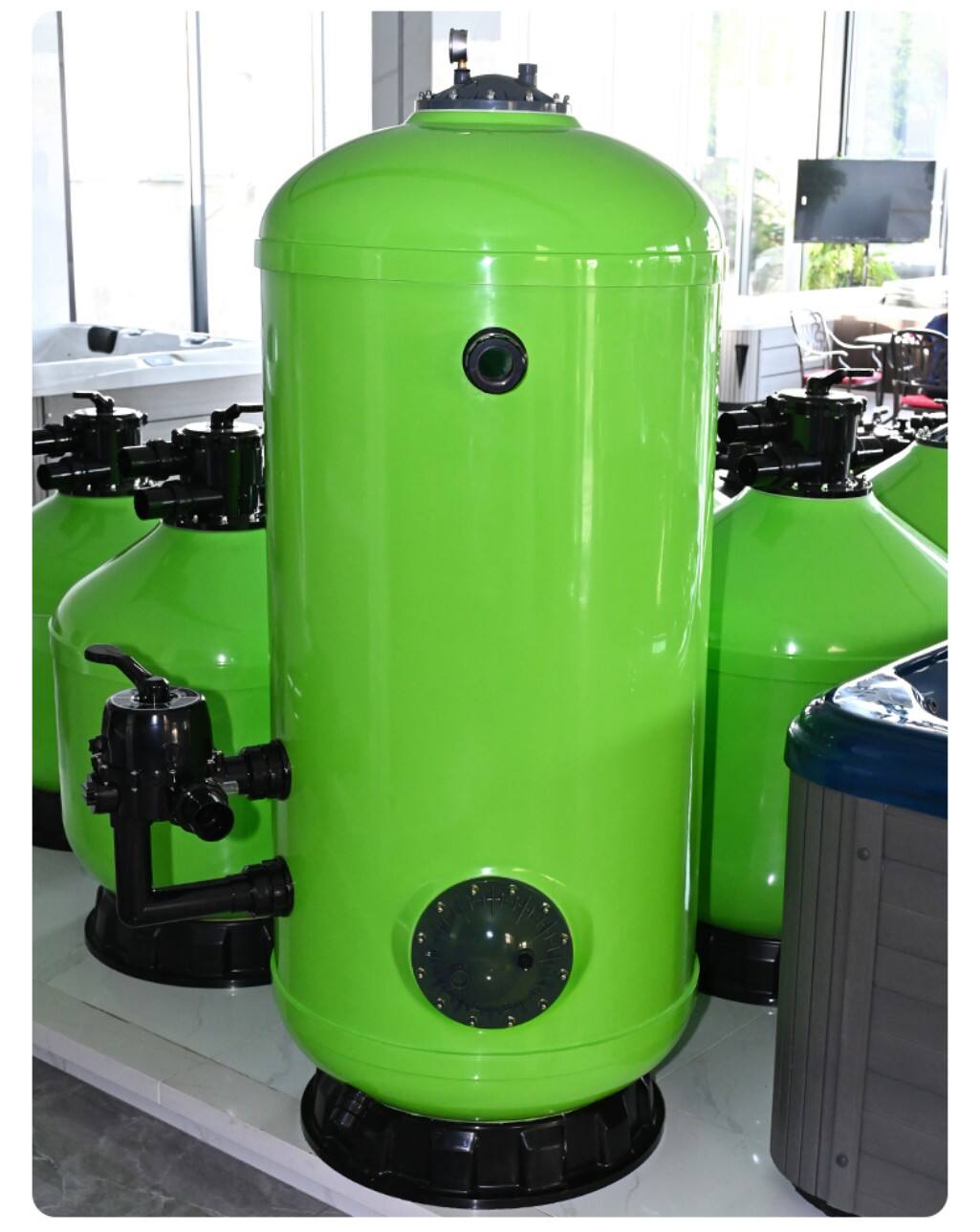

"GFD" Series Laminated Side Mount Deep Bed Filter
| OEM | Available |
| Sample | Charge |
| Port | Huangpu, Guangzhou |
| Payment | T/T |
| Place of Origin | China |
| Shipping | Sea freight |
| Supply Ability | 10000 pieces per Month |
- Overview
- Recommended Products
Description:
The GFD Series Laminated Side-Mounted Deep Bed Filter features a 1.0M deep sand bed design, ensuring thorough filtration while meeting the high standards of water treatment engineering requirements.
| Matrial | Fiberglass |
| Color | Green |
| Warraty | 1 Year |
| Suggested Size of Media | 1.0-2.0mm |
Specifications:

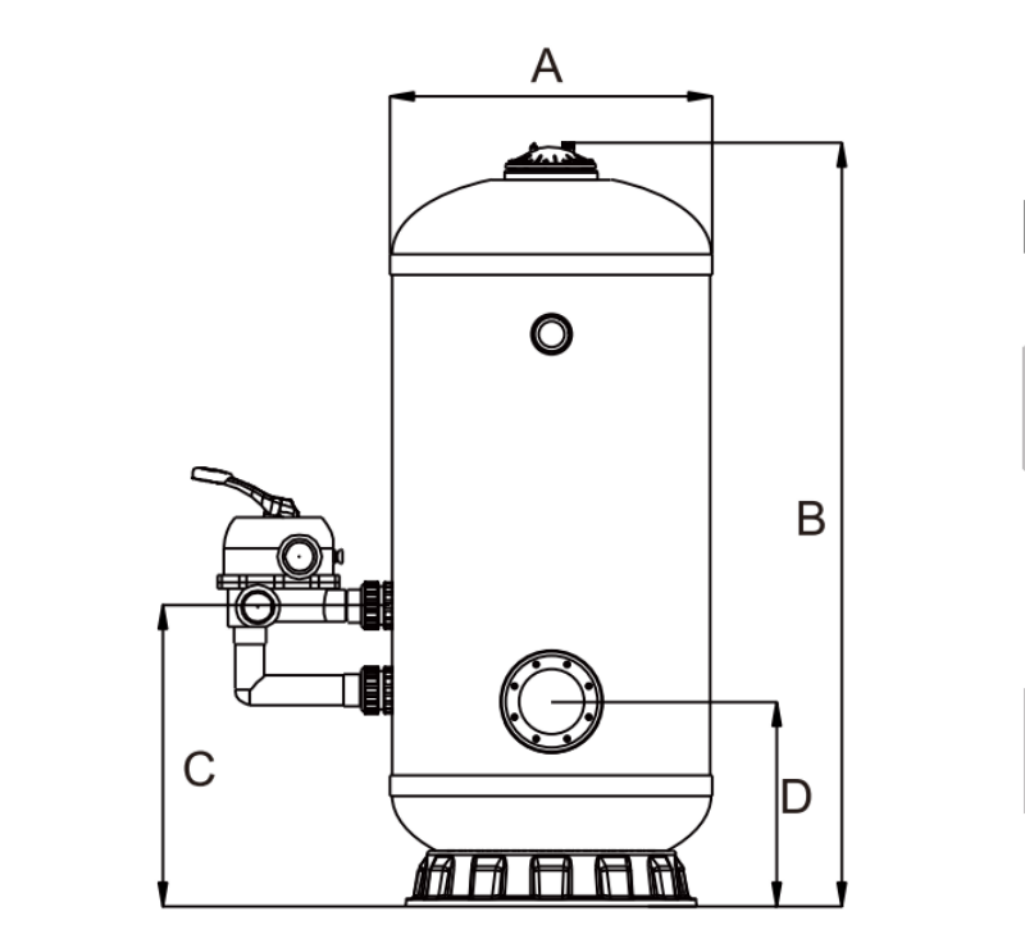

| Model | Filter Area (㎡) | Valve Connections | Max Flow Rate | Gravel (kg) | A mm | B mm | C mm | D mm |
| GFD650 | 0.38 | 1.5" | 15.2 m³/h | 580 | 650 | 1672 | 750 | 510 |
| GFD800 | 0.5 | 2.0" | 20.0 m³/h | 914 | 800 | 1900 | 750 | 510 |
| GFD900 | 0.63 | 2.0" | 25.2 m³/h | 1146 | 900 | 1940 | 870 | 560 |
Highlight Features:
1.Max operating pressure 36psi/2.5bar
2.Max temperature of 43°C(109°F)
3.Maximun filtration velocity:50m3/h/m²
4.Universal standard of union connection provided
5.Suggested size of media:1-2mm
6.Dual layers of laterals

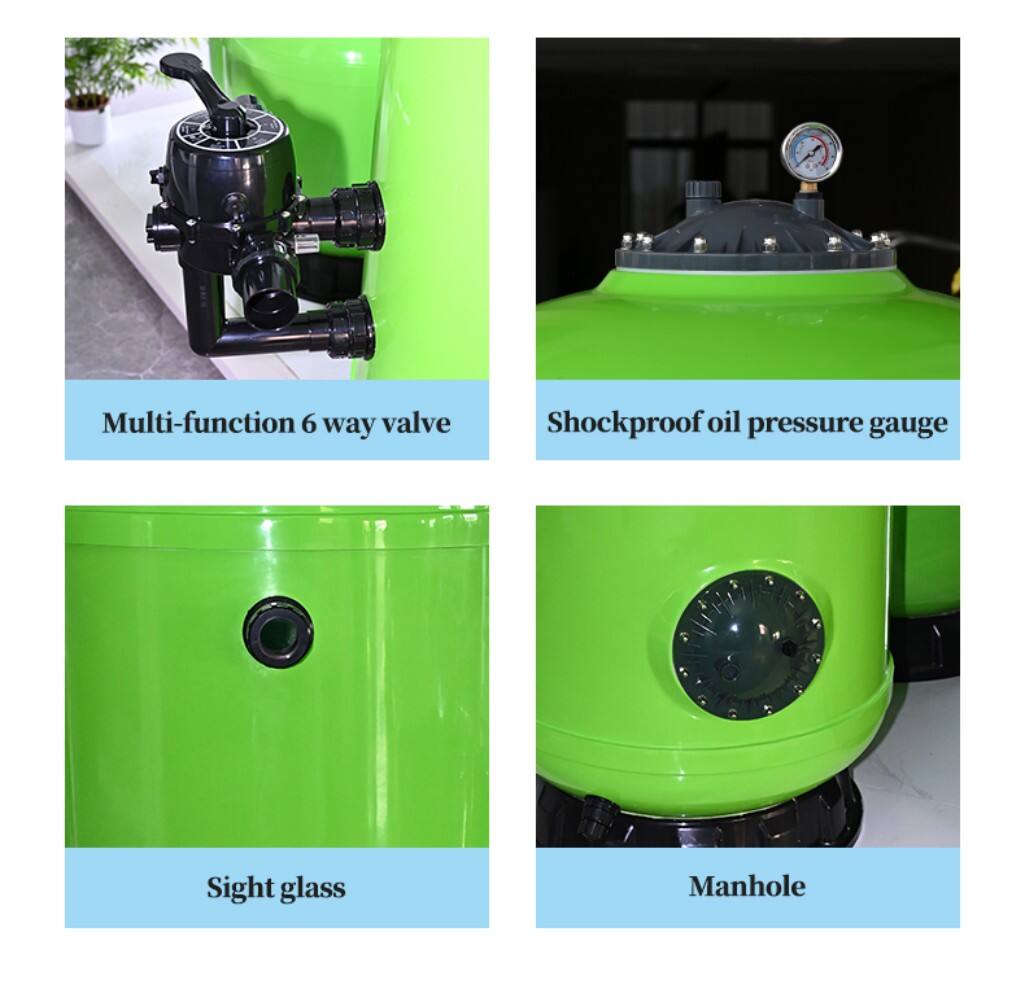

7.4"Sight glass

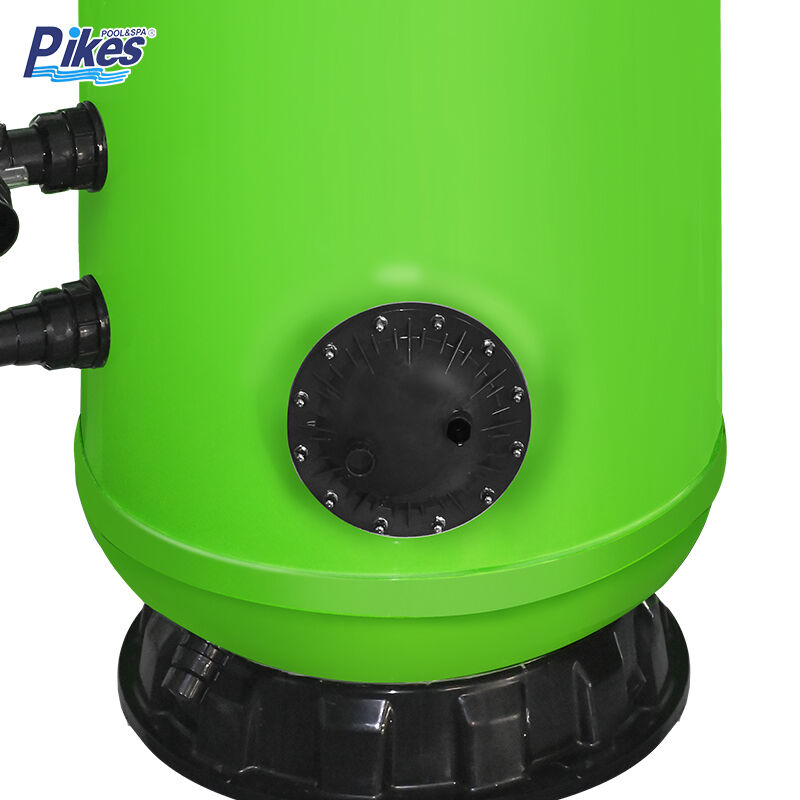

8.158mm manhole for servicing
9.2"bottom drain
Applications:
Residential swimming pool water filtration
Commercial swimming pool circulation system
SPA and hot tub filtration
Above-ground and in-ground swimming pools
Pool equipment room filtration system
Water treatment for fountains and water features
