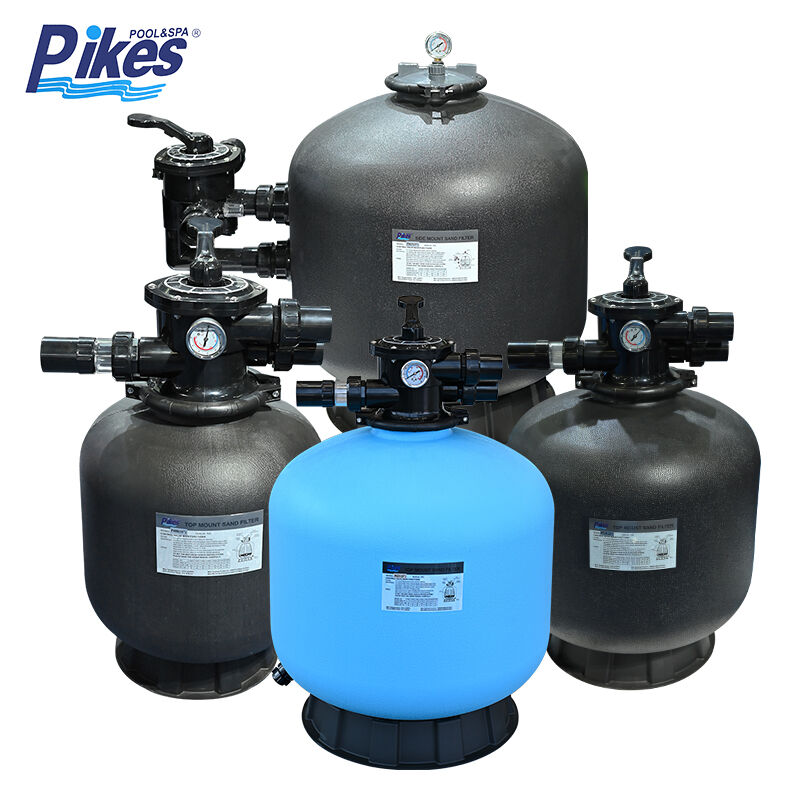

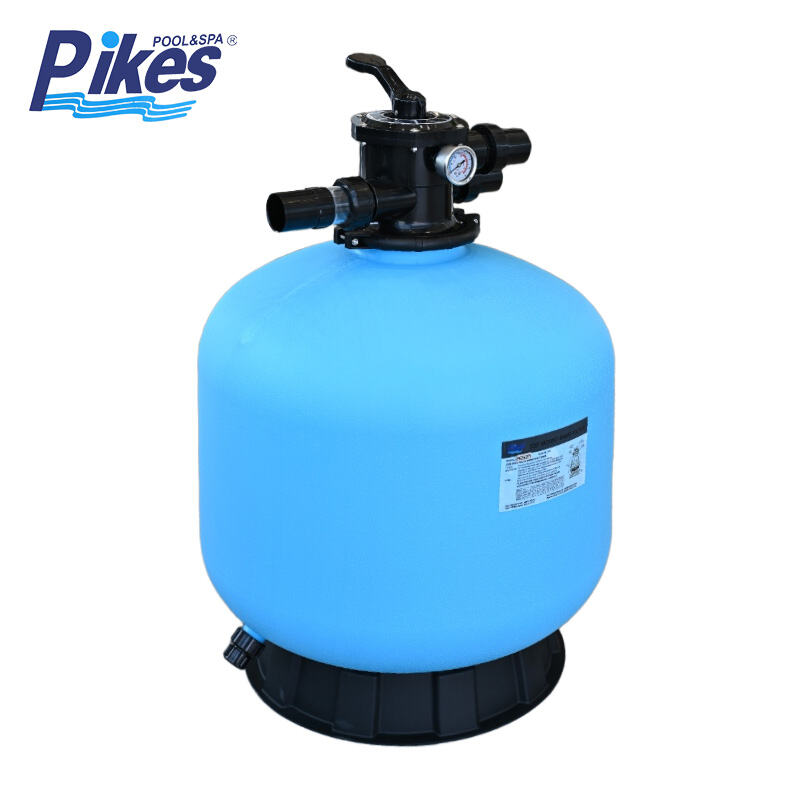

"S" Series Top Mount Plastic Filters
| OEM | Available |
| Sample | Charges |
| Port | Huangpu, Guangzhou |
| Payment | T/T |
| Place of Origin | China |
| Shipping | Sea freight |
| Supply Ability | 1000 pieces per Month |
- Overview
- Recommended Products
Description:
The S Series Filters are designed to endure years of prolonged exposure to sunlight. Featuring a UV-resistant, one-piece blow-molded filter tank, they have gained industry recognition not only for their exceptional durability but also for their reliable performance and cost-effectiveness.
Product Details:
| Color | Black, blue |
| Tank Material | HDPE |
| Max operating pressure | 28psi/200kPa |
| Max temperature | 40°C(104°F) |
| Standard | Universal standard of union connection provided |
| Suggested size of media | 1-2mm |
Specifications:
| Model | Filter Area(㎡) | Valve Connection | Max Flow Rate | Gravel(kg) | A | B |
| mm | mm | |||||
| S350 | 0.1 | 1.5 inch | 4.32 m³/h | 20 | 745 | 350 |
| S400 | 0.13 | 1.5 inch | 6.12 m³/h | 35 | 750 | 405 |
| S450 | 0.16 | 1.5 inch | 7.8 m³/h | 45 | 815 | 450 |
| S525 | 0.22 | 1.5 inch | 10.8 m³/h | 85 | 850 | 535 |
| S650 | 0.31 | 1.5 inch | 15.3 m³/h | 145 | 915 | 635 |
| S700A | 0.39 | 1.5 inch | 19.20 m³/h | 210 | 1010 | 710 |
Highlight Features:
1.Polyester reinforced with fiberglass filter tank
2.Max operating pressure 36psi/2.5bar
3.Max temperature of 43C (109°F)
4.Universal standard of union connection provided
5.Suggested size of media:1-2mm
Applications:
Swimming Pool Filtration
Residential swimming pools
Hotel & resort pools
Commercial swimming pools
SPA & wellness facilities
Indoor and outdoor pools
