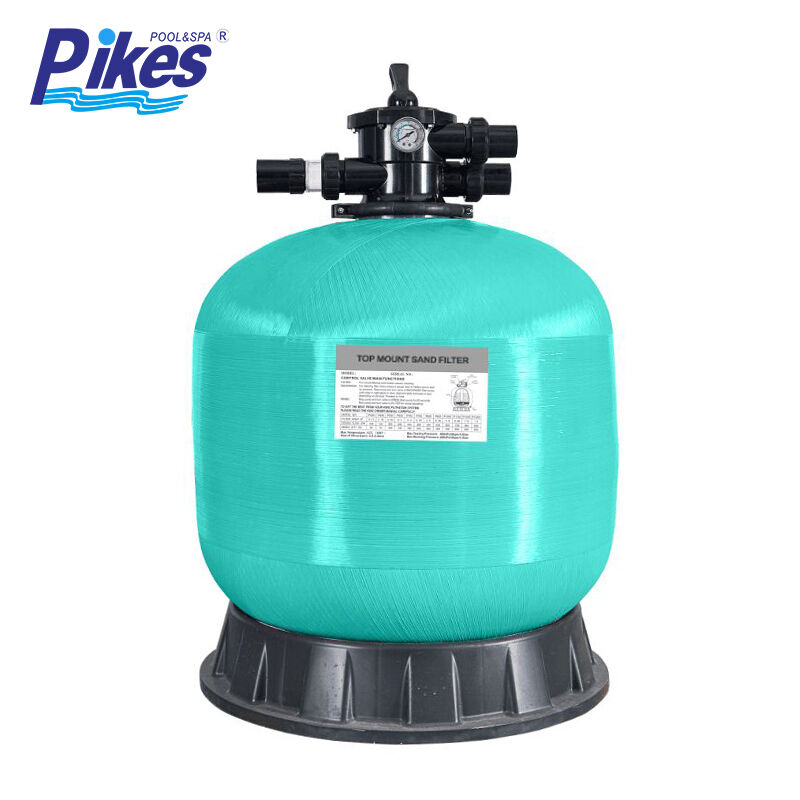

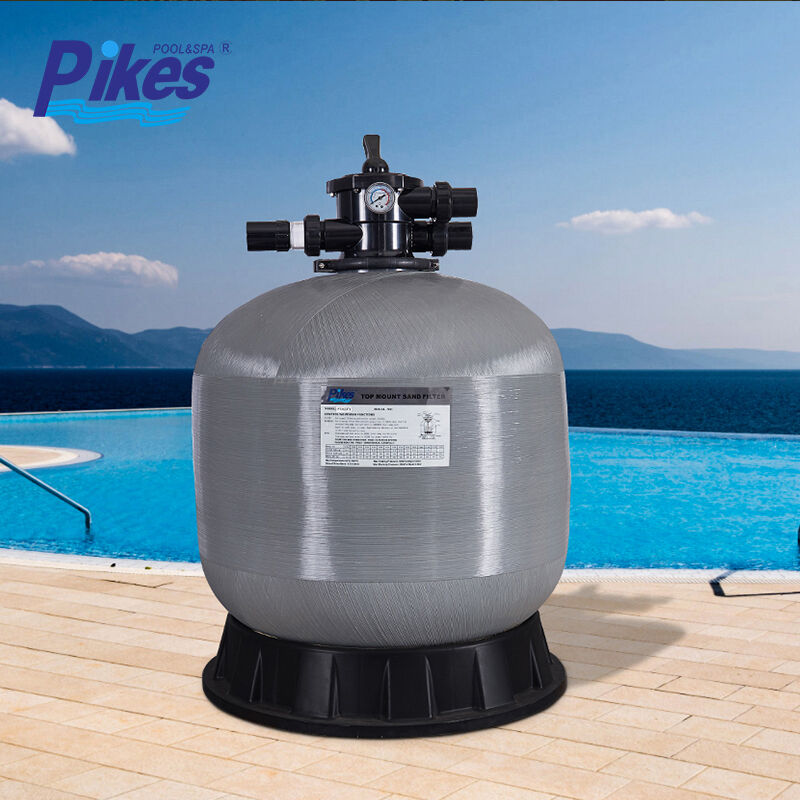

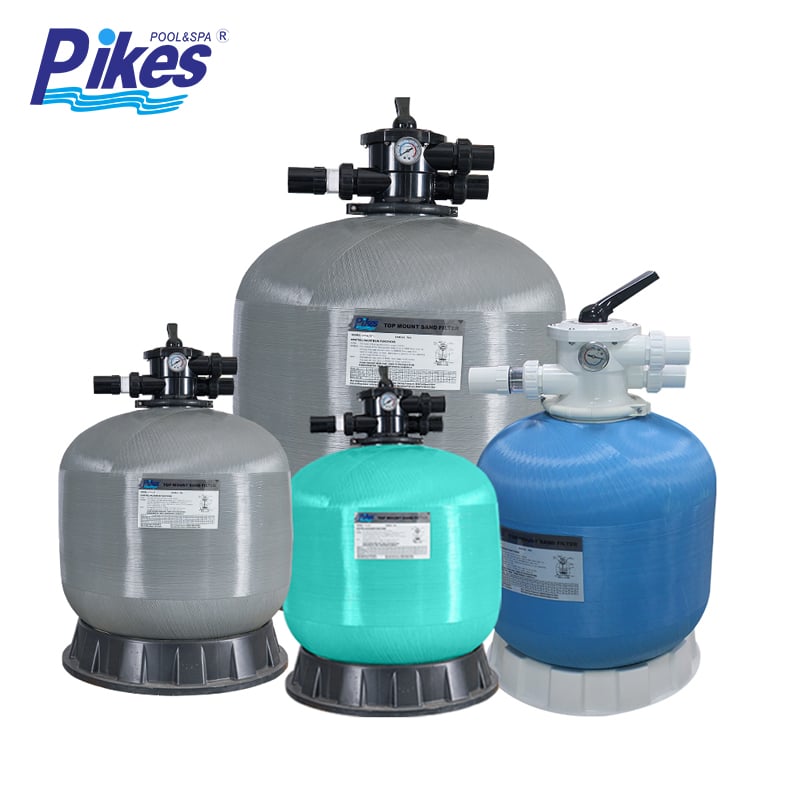

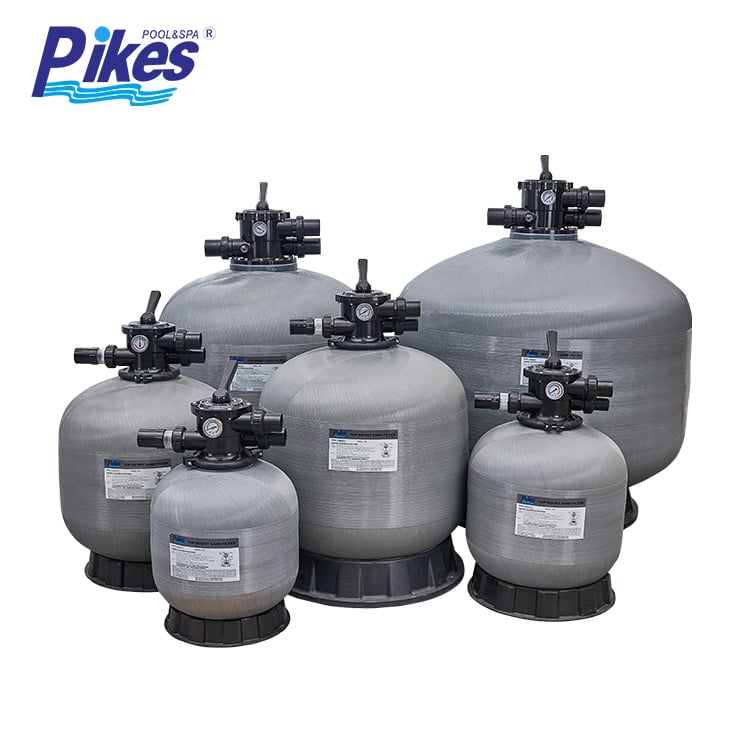

”P” Series Fiberglass Top Mount Sand Filter
| OEM | Available |
| Sample | Charge |
| Port | Huangpu, Guangzhou |
| Payment | T/T |
| Place of Origin | China |
| Shipping | Sea freight |
| Supply Ability | 10000 pieces per Month |
- Overview
- Recommended Products

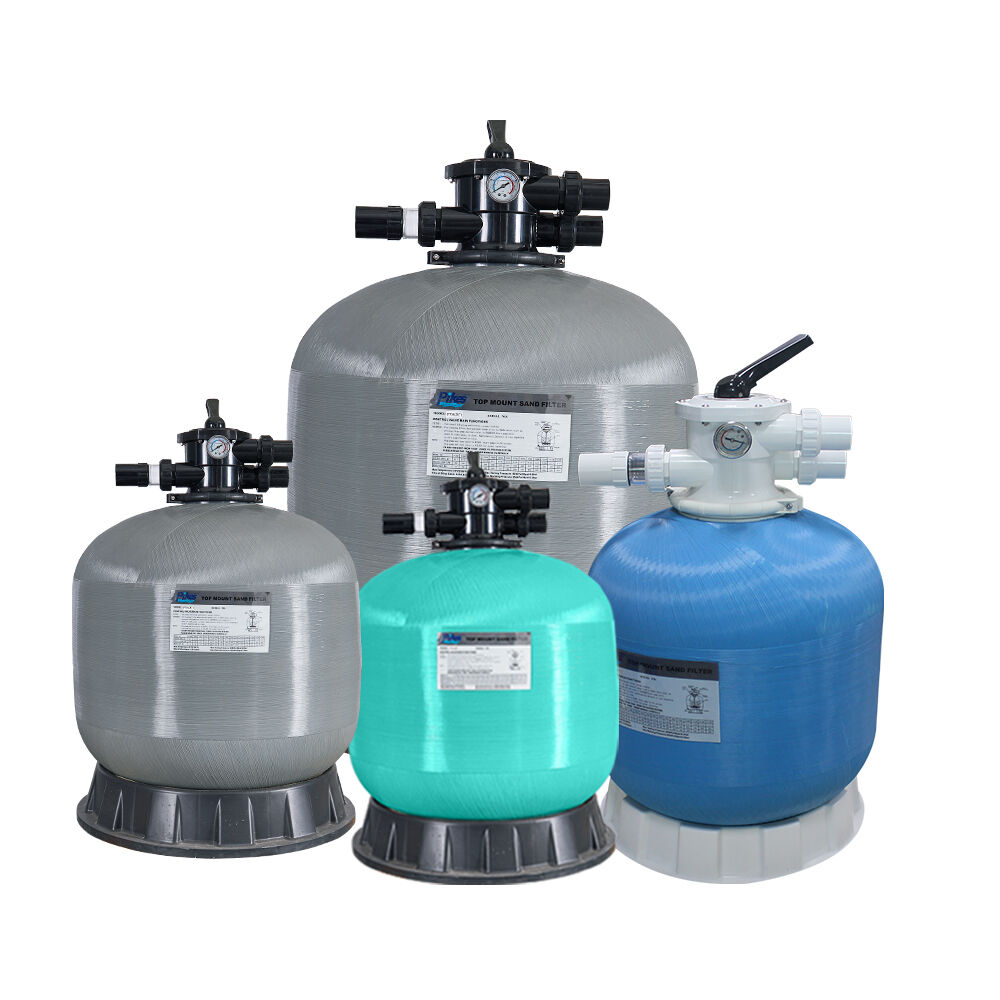

Description:

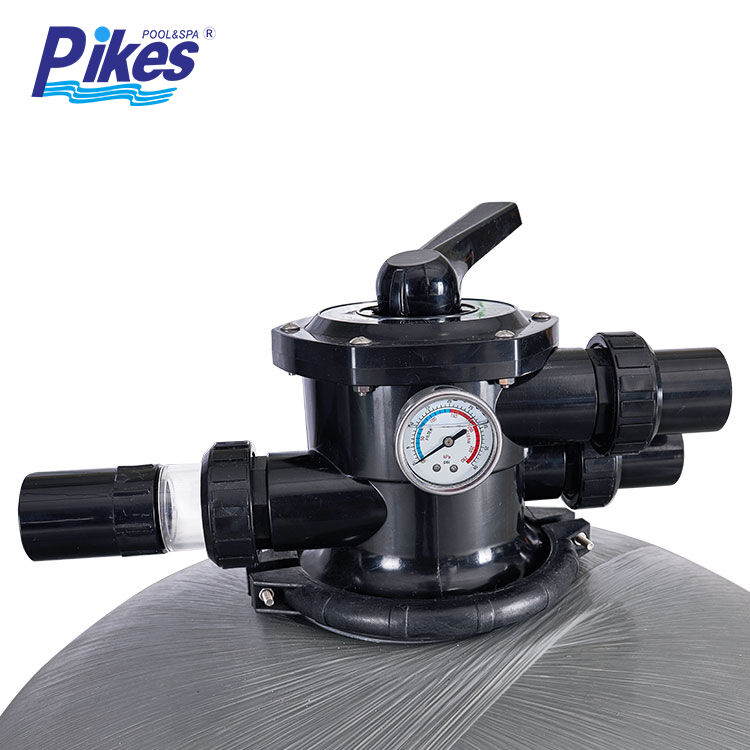

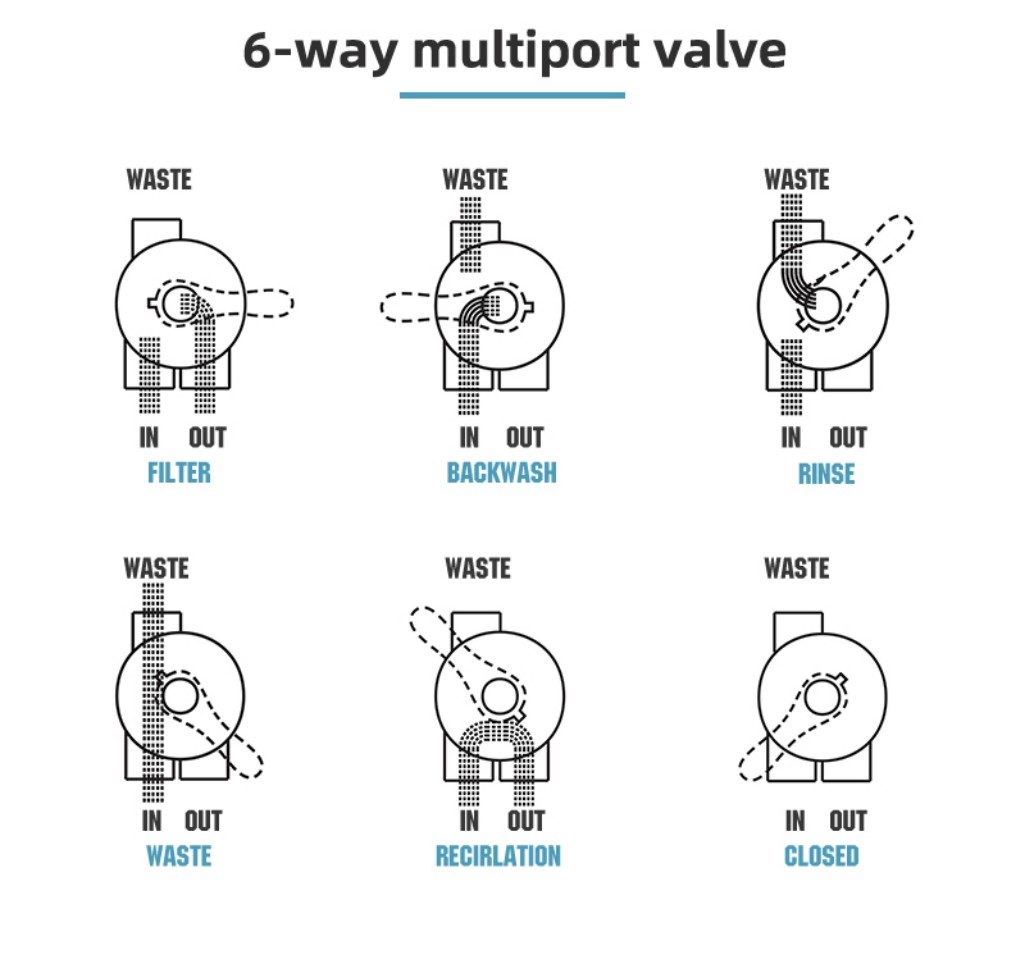

Bobbin-wound fiberglass reinforced tank is still the most popular standard in the industry after all. With Uv-resistant surface finished, it is able to operate under prolong sunlight for years of reliability. Pseries (P400-P1400) filters are equipped with a six-position, clamp and screw styles multiport vale and ABS laterals.
Specifications:
Model |
Filter Area (m²) |
Valve Connections |
Max Flow Rate |
Gravel (kg) |
A mm |
B mm |
|
P400 |
0.13 |
1.5 inch |
50mm |
8 m³/h |
35 |
720 |
400 |
P450 |
0.16 |
1.5 inch |
50mm |
10 m³/h |
45 |
770 |
450 |
P525 |
0.22 |
1.5 inch |
50mm |
12 m³/h |
85 |
840 |
525 |
P625 |
0.3 |
1.5 inch |
50mm |
16 m³/h |
150 |
960 |
625 |
P700 |
0.4 |
1.5 inch |
50mm |
20 m³/h |
210 |
1040 |
700 |
P700B |
0.4 |
2 inch |
63mm |
21 m³/h |
215 |
1080 |
700 |
P750 |
0.45 |
2 inch |
63mm |
23 m³/h |
300 |
1100 |
750 |
P800 |
0.5 |
2 inch |
63mm |
25 m³/h |
355 |
1210 |
800 |
P900 |
0.64 |
2 inch |
63mm |
31 m³/h |
470 |
1270 |
900 |
P1000 |
0.79 |
2 inch |
63mm |
36 m³/h |
620 |
1360 |
1000 |
P1100 |
0.96 |
2 inch |
63mm |
42 m³/h |
800 |
1400 |
1100 |
P1200 |
1.13 |
2 inch |
63mm |
45 m³/h |
900 |
1420 |
1200 |
P1400 |
1.54 |
2 inch |
63mm |
56 m³/h |
1350 |
1750 |
1400 |

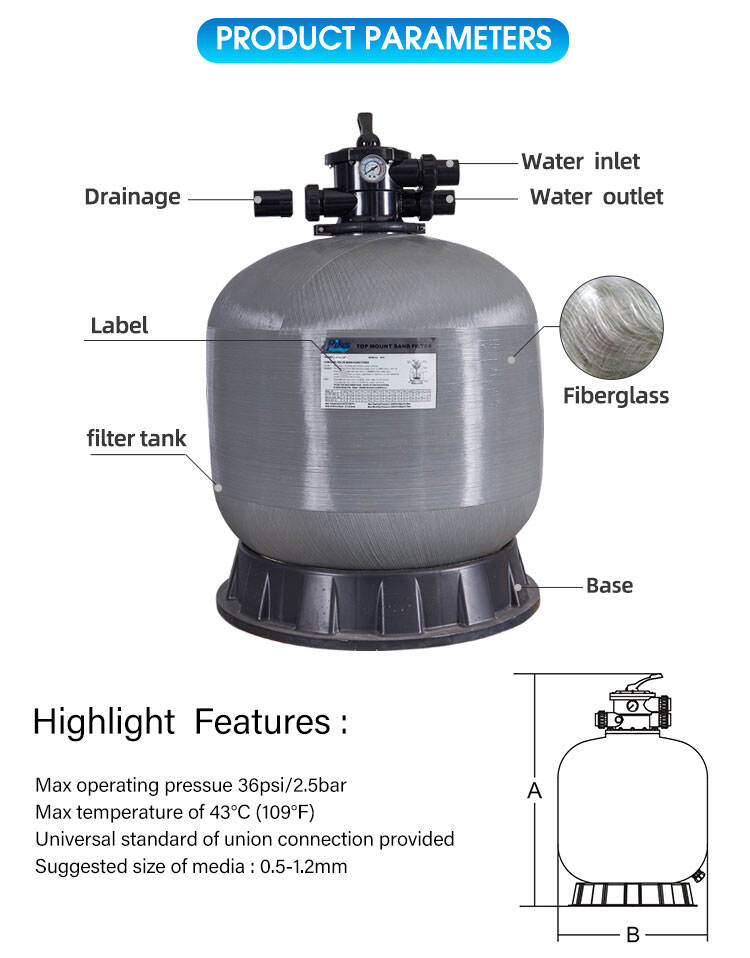

Highlight Features:
1. Max operating pressure 36psi/2.5bar
2. Max temperature of 43°C(109°F)
3. Universal standard of union connection provided
4. Suggested size of media:1-2mm
Applications:
Swimming Pool Filtration
Residential swimming pools
Hotel & resort pools
Commercial swimming pools
SPA & wellness facilities
Indoor and outdoor pools
