Description:
The new "VFPB" series of intelligent variable-speed water pumps are product we have developed specifically for swimming pool applications. This series features high efficiency, high power density, adjustable speed, and intelligent functionality. Additionally, we have developed comprehensive control functions tailored to the application of swimming pool pumps, enabling them to operate in manual mode, run automatically according to schedules, perform automatic air bleeding, power off, and more. Furthermore, they are equipped with WIFI / Bluetooth + APP intelligent modes, allowing for remote monitoring and mobile phone parameter configuration, among other functions.
Product Details:
1.Energy saving the design ofEficientle5 motor &the technology of stable variable frequency operation.
2.More secure and reliable-lts multiple automatic protections ofLack of water/over voltage/under voltage/over heat.

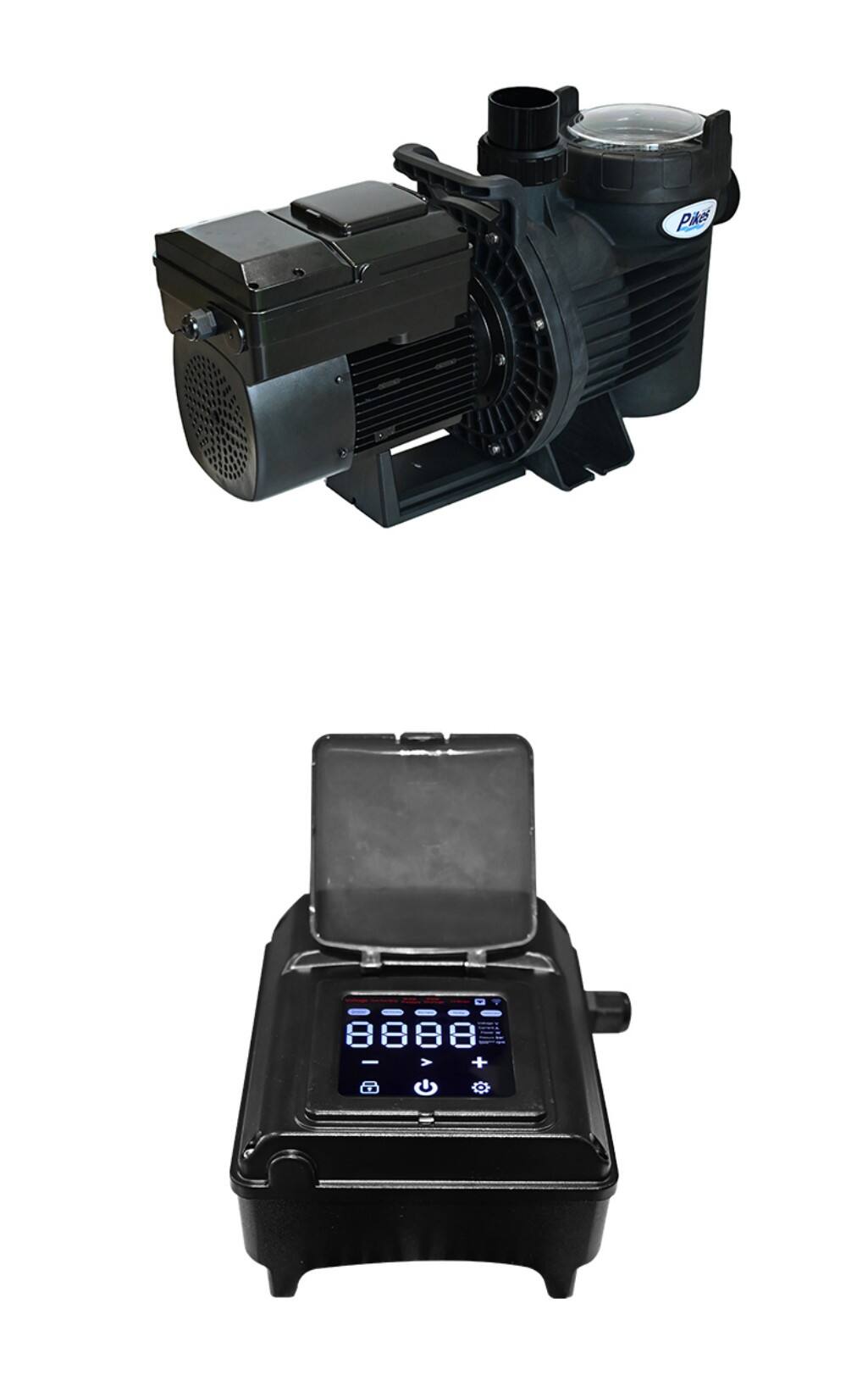

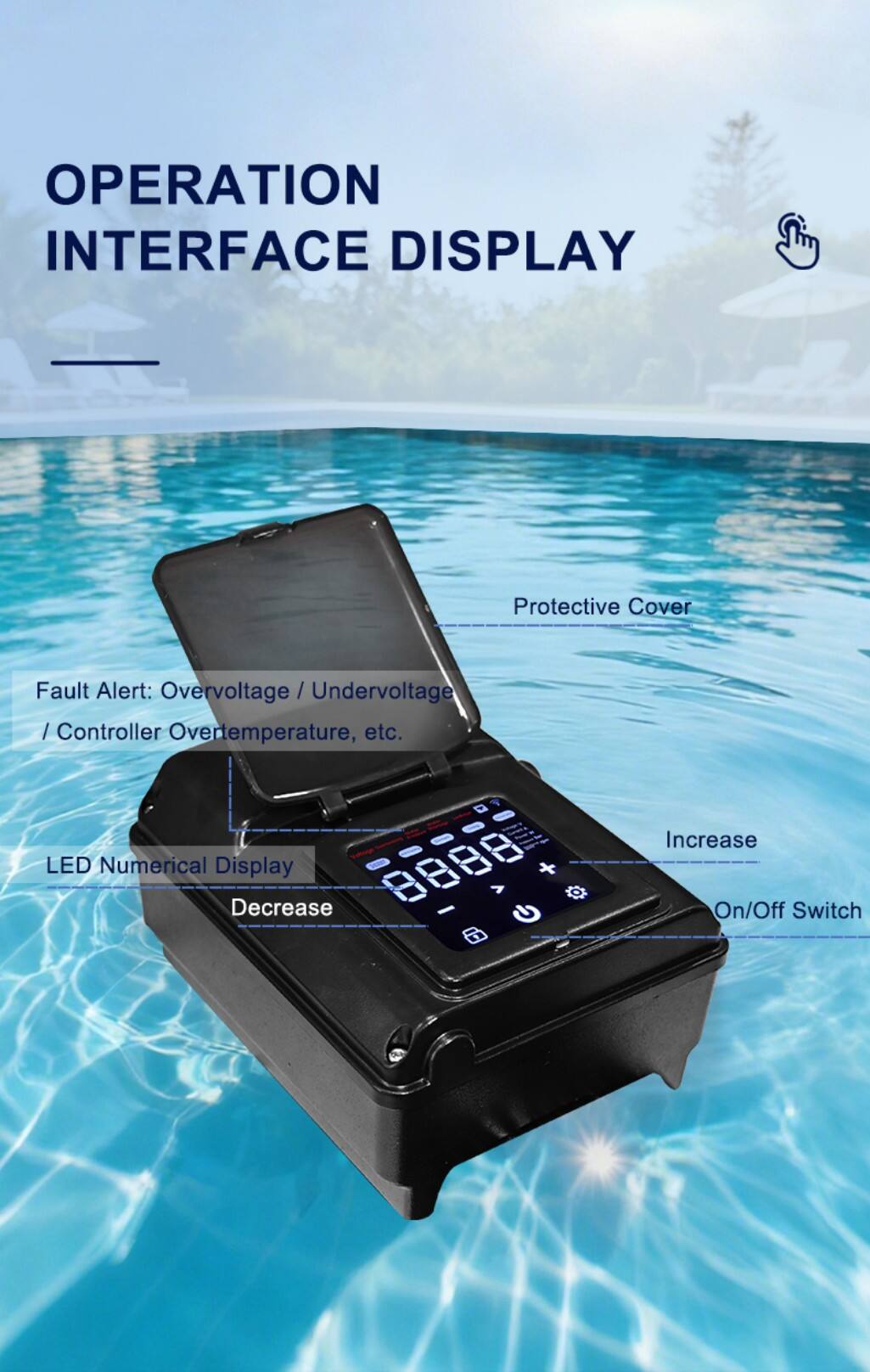

3.Higher level of outdoor protection-The water proof cover is on the LED touch screen. APP connection.
4.WiFi/Bluetooth.
5.The design of PFC high power factor.
6.The 115V and 230Vinterchangeable systems provide constant energy, eliminating the need for main power wiring.
7.Built-in clock, it's programmable.

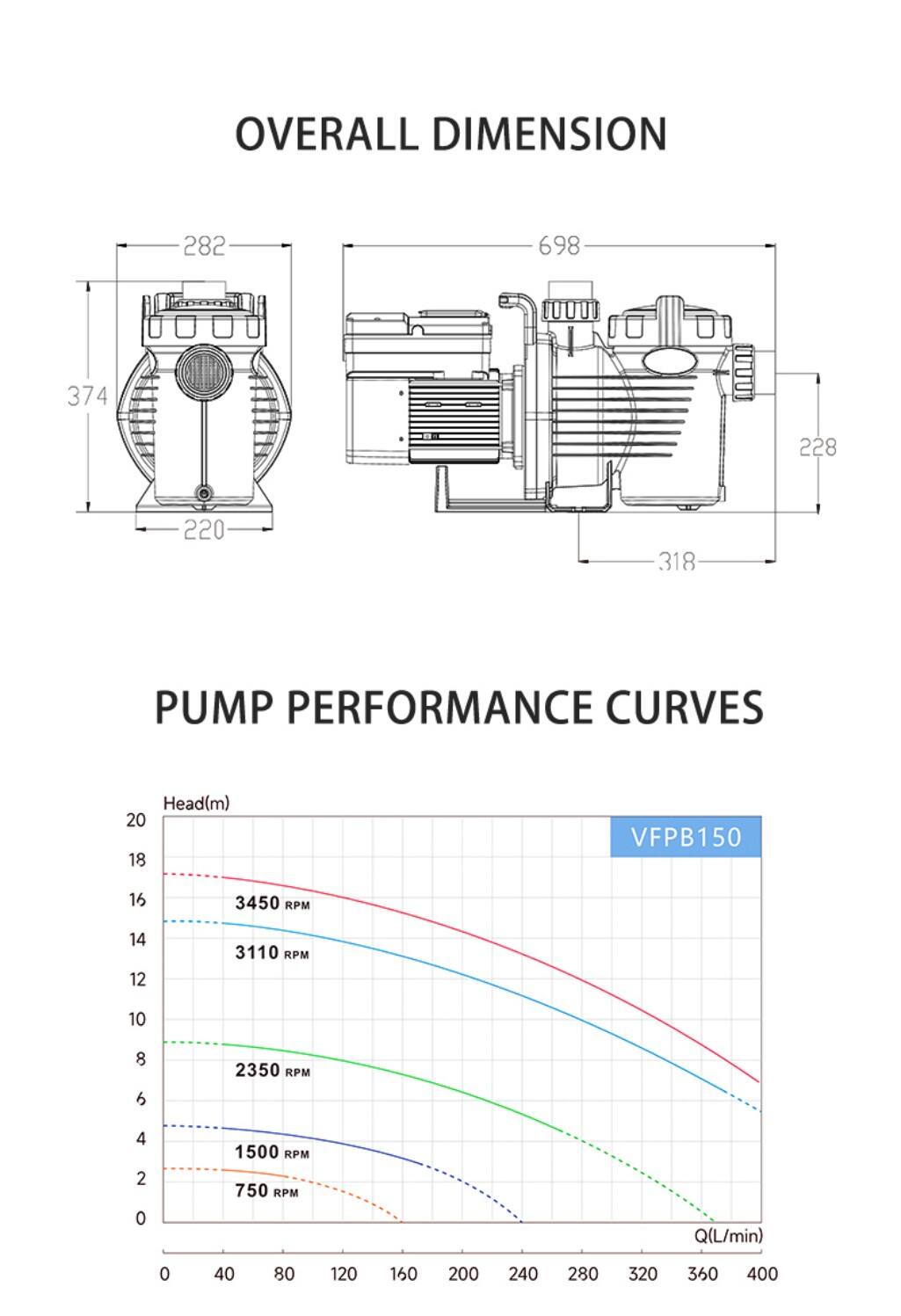

Technical Characteristics:
| Modal | Power(P1) | Qmax | Hmax | Speed | Motor Efficiency | Outlet | Input Voltage | |
| KW | HP | (l/min) | (m) | (RPM) | -1% | (mm) | (VAC50/60HZ) | |
| VFPB150 | 1.1 | 1.5 | 400 | 17 | 600-3450 | 90.5 | 60.3or63 | 208-240 |
| VFPB200 | 1.5 | 2 | 440 | 19 | 600-3450 | 90.5 | 60.3or63 | 208-240 |
| VFPB300 | 2.2 | 3 | 520 | 22.5 | 600-3450 | 90.5 | 60.3or63 | 208-240 |
Applications:
Residential swimming pools
Domestic swimming pool circulation system
Medium-size swimming pools
Villa and private house pools
Spa pools and water circulation systems
Pool filtration and water treatment systems
