Product Details

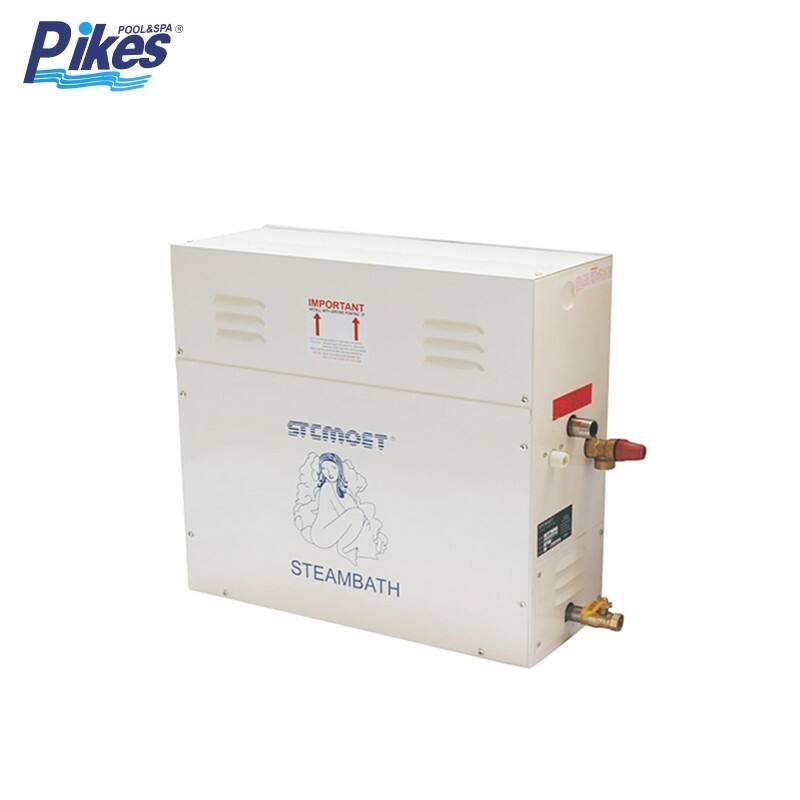

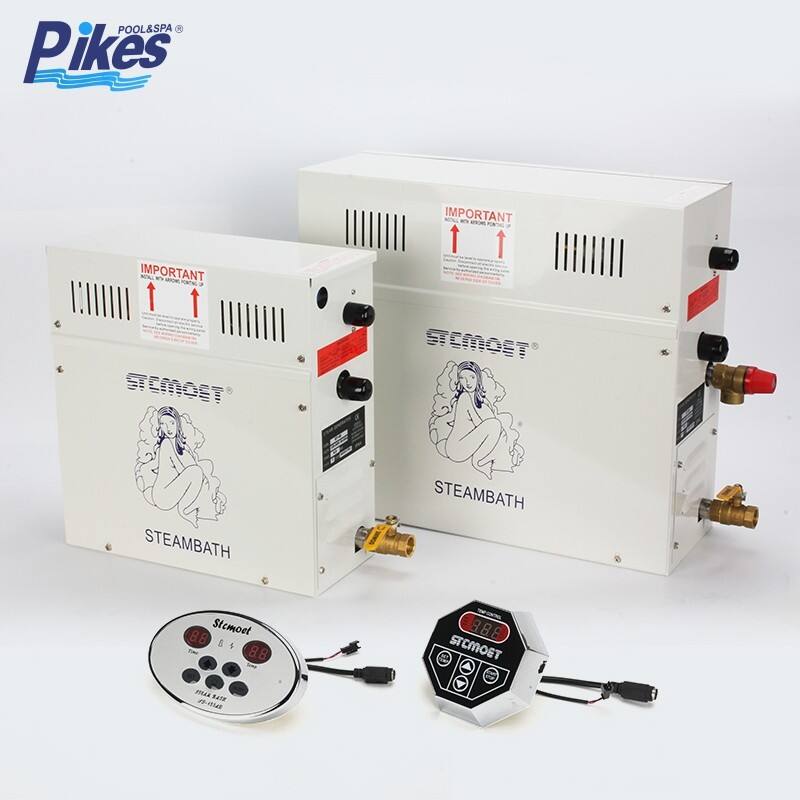

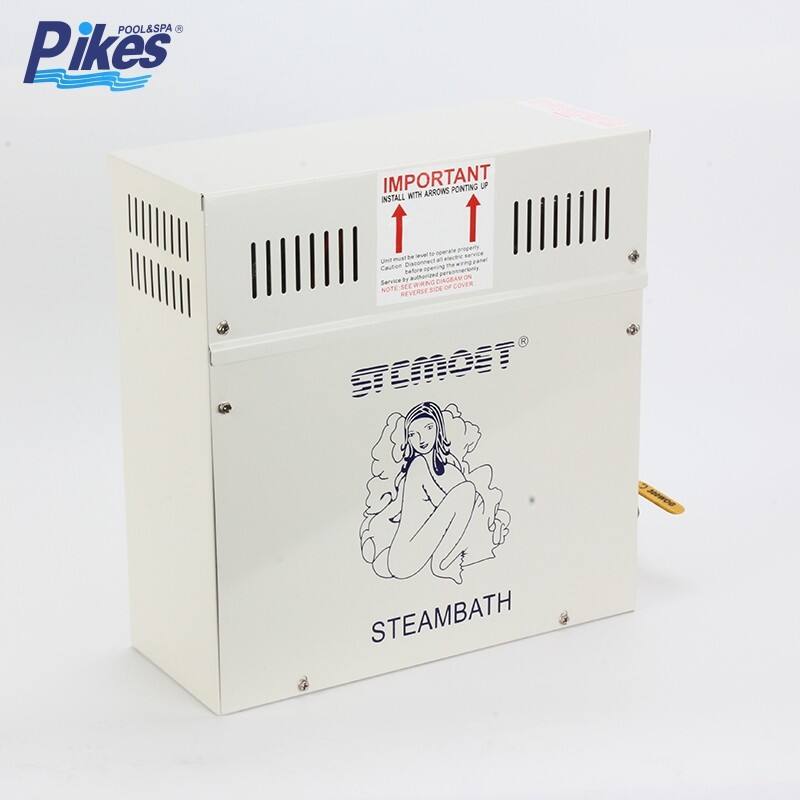

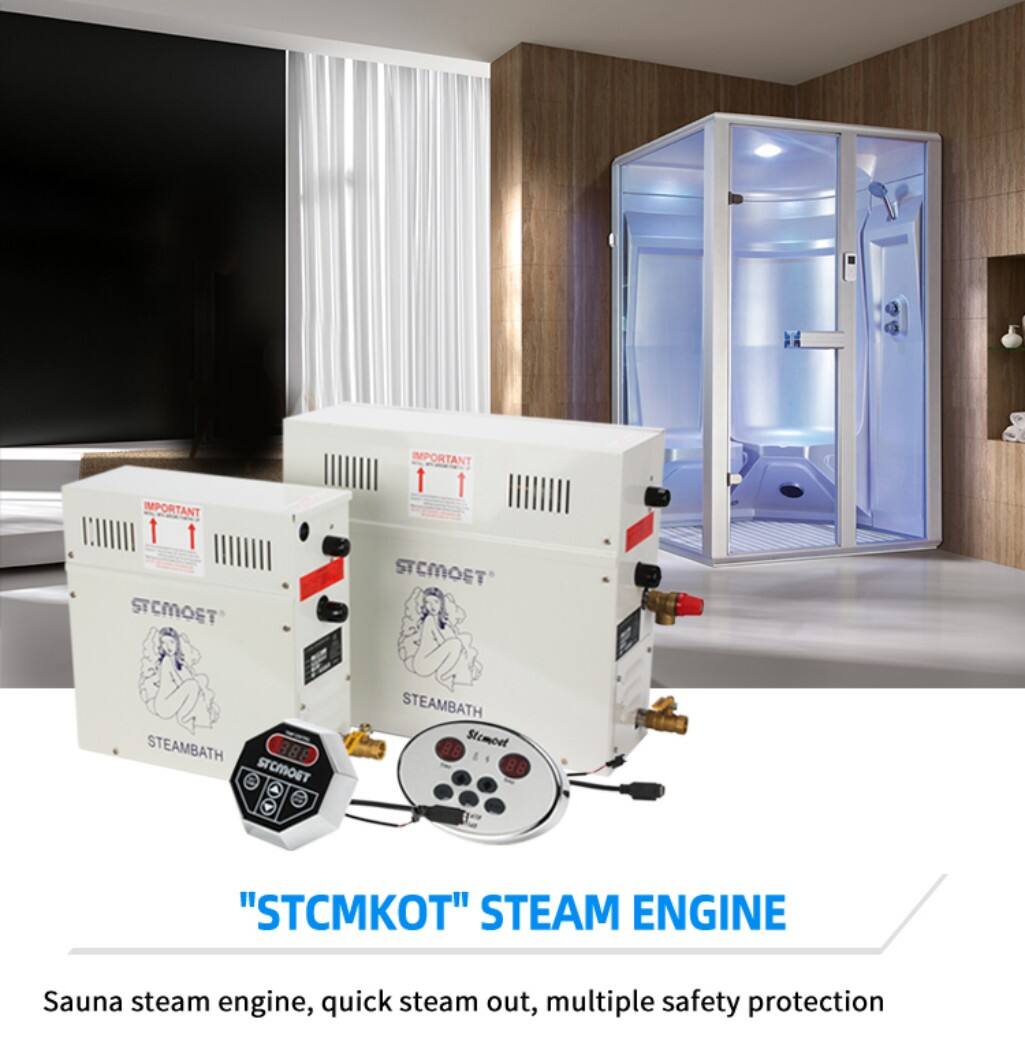

Steam generator is designed to provide stable and efficient steam for steam rooms and sauna rooms. With compact structure and easy installation, it delivers fast heating and consistent steam output for comfortable relaxation. Built with reliable components, it ensures safe operation, energy efficiency, and long service life, making it ideal for both residential and commercial steam room applications.

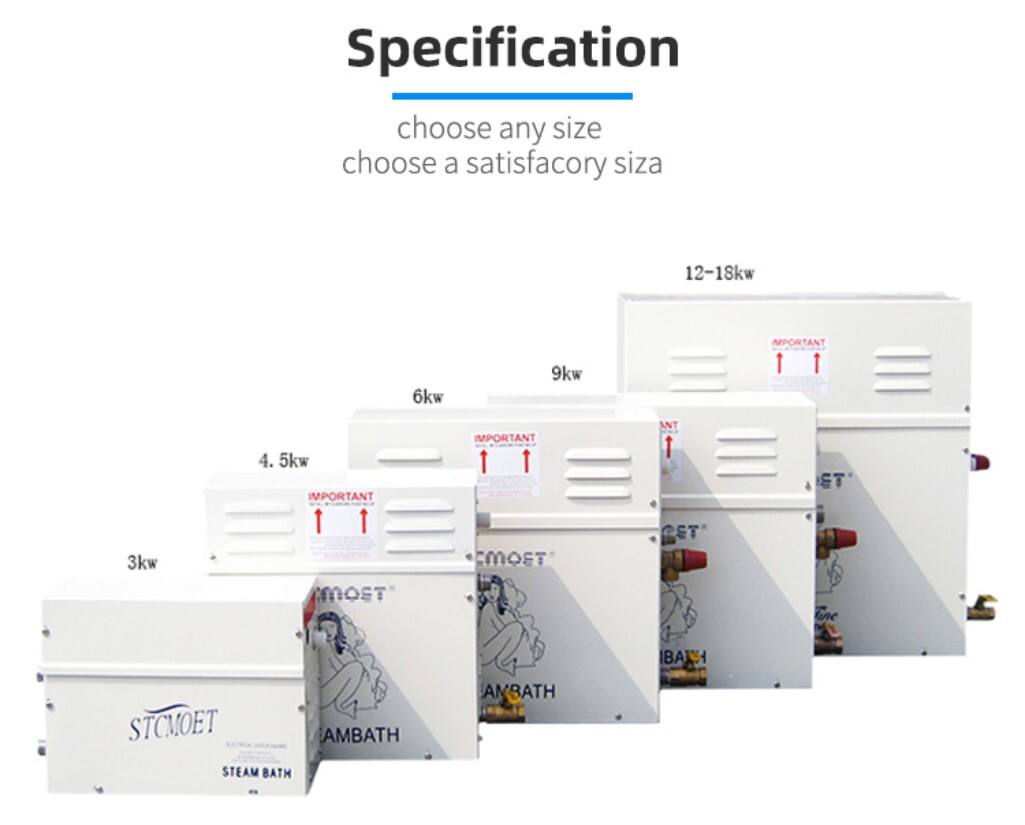

Technical Characteristics
Model |
Power(kw) |
Voltage(V) |
Current (A) |
Room(m³) |
AWG |
ST-30 |
3 |
200-240 |
13.6 |
2.5-5 |
3*11 |
ST-40 |
4 |
200-240 |
18.2 |
5-6 |
3*10 |
ST-60 |
6 |
200-240 |
27.3 |
6-7 |
3*8 |
380-415 |
9.1 |
5*13 |
|||
ST-70 |
7 |
200-240 |
31.8 |
7-9 |
3*8 |
380-415 |
11.4 |
5*12 |
|||
ST-80 |
8 |
200-240 |
36.4 |
9-10 |
3*7 |
380-415 |
13.6 |
5*11 |
|||
ST-90 |
9 |
200-240 |
41 |
10-12 |
3*7 |
380-415 |
13.6 |
5*11 |
|||
ST-105 |
10.5 |
380-415 |
16 |
12-15 |
5*11 |
ST-120 |
12 |
380-415 |
18 |
15-18 |
5*10 |
ST-150 |
15 |
380-415 |
23 |
18-21 |
5*9 |
ST-180 |
18 |
380-415 |
27.3 |
21-24 |
5*8 |
Application
Steam rooms and wet steam sauna rooms
Home and family steam shower systems
Hotels, resorts, and spa centers
Portable or retrofit steam room projects
