Description:
PVC plastic chamber is compatible for fresh water,sea water, chlorine feeder
and salt chlorinator.
Lamp life: 90 hours of operation,approximate 12months of continuous service.
Ballasts: UL,CUL,TUV-CE listed, LED visual & audible alarm, Overheating
protection, Instant start.
Technical Characteristics
Model |
16ml/c㎡UVT=90% |

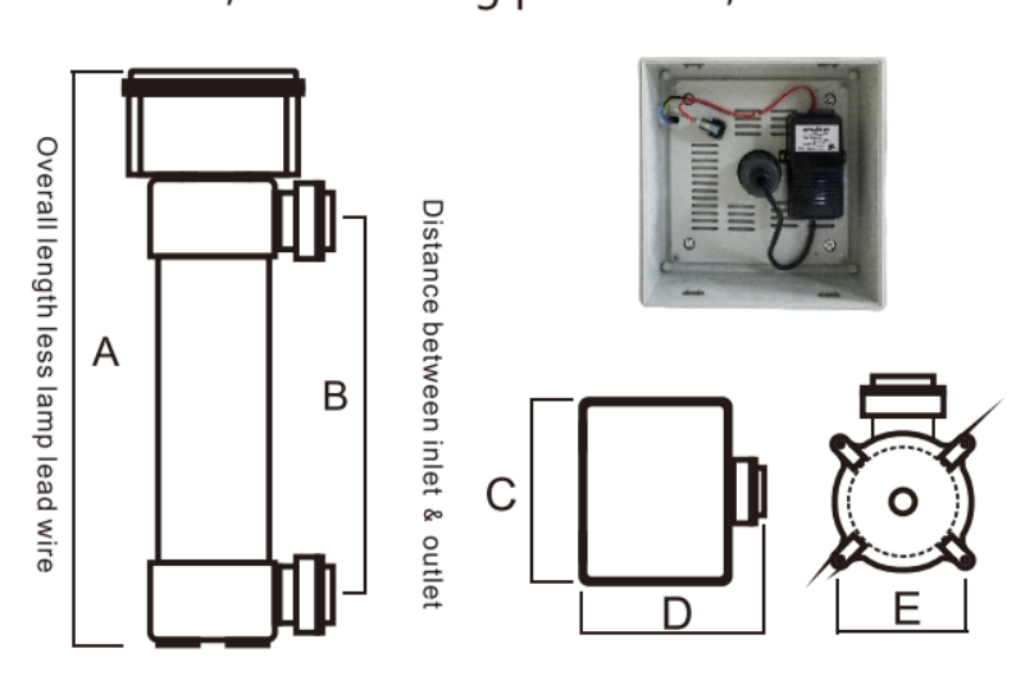

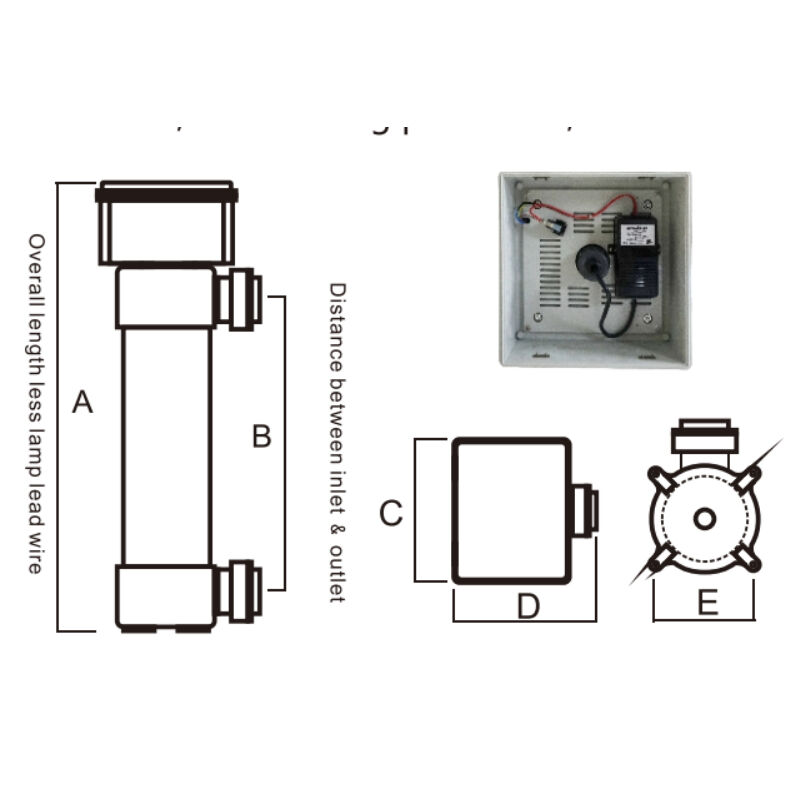

Dimension(mm) A/B/C/D/E/F |
Inlet/Outlet Union |
UV Lamp |
Output power |
Voltage frequency |
Designed working pressure |
Operation temperature |

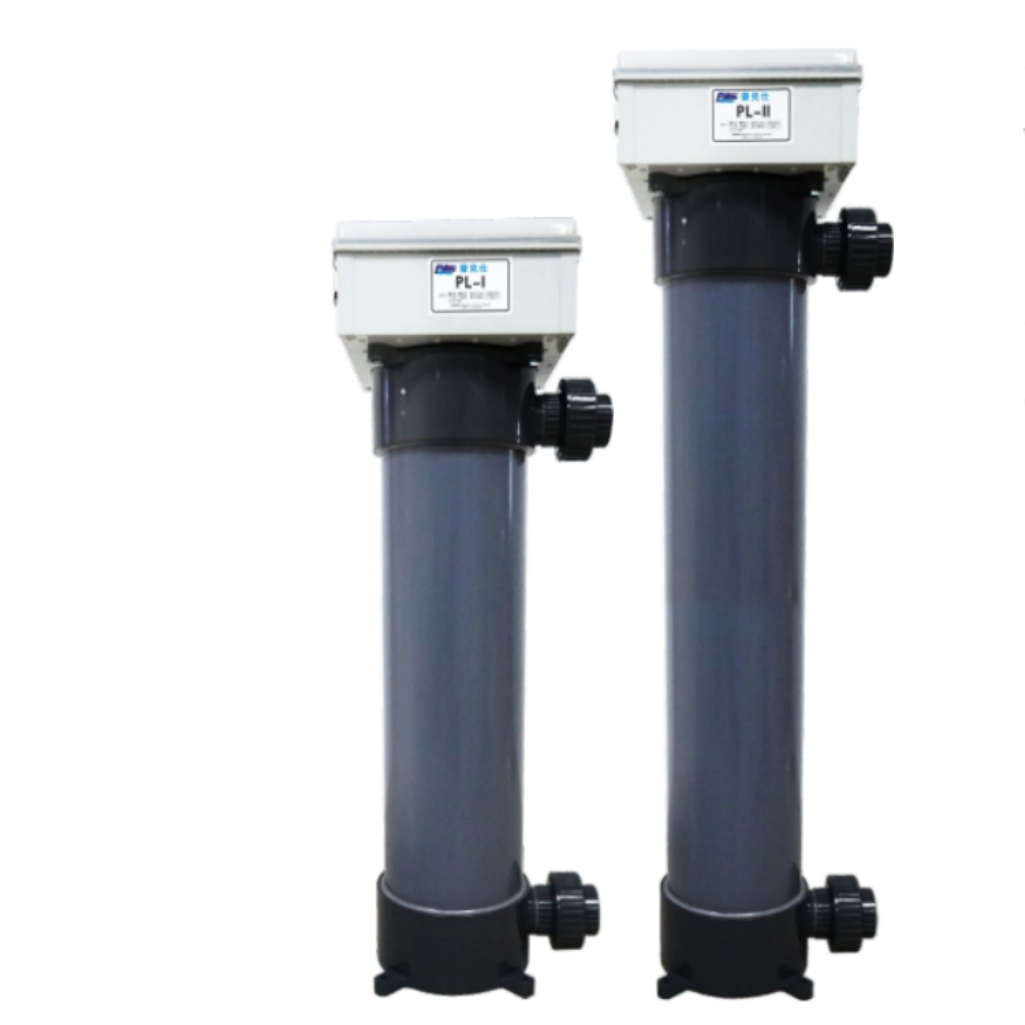

PL-I |
162GPM (36612LPH) |
765/988/219/210/351/305 |
2" |
T585 |
85w |
100-240V 50-60Hz |
40Psi |
2-40℃ |
PL-II |
204GPM (46104LPH) |
1065/1288/219/210/351/305 |
2" |
T5120 |
120w |
100-240V 50-60Hz |
40Psi |
2-40℃ |
Applications:
UV sterilization for swimming pool water
Residential and commercial pools
Hotel, resort, and spa pool water treatment
Indoor and outdoor pool disinfection systems
Chemical-free pool water purification
Pool water safety and hygiene management
Tag:
Swimming Pool UV Sterilizer
