Pikes Pool Fiberglass Accessories Swim Sand Filter SPA Water Treatment Filters Cartridge Efficient Filtration System Model AF50
- Overview
- Recommended Products
Description:

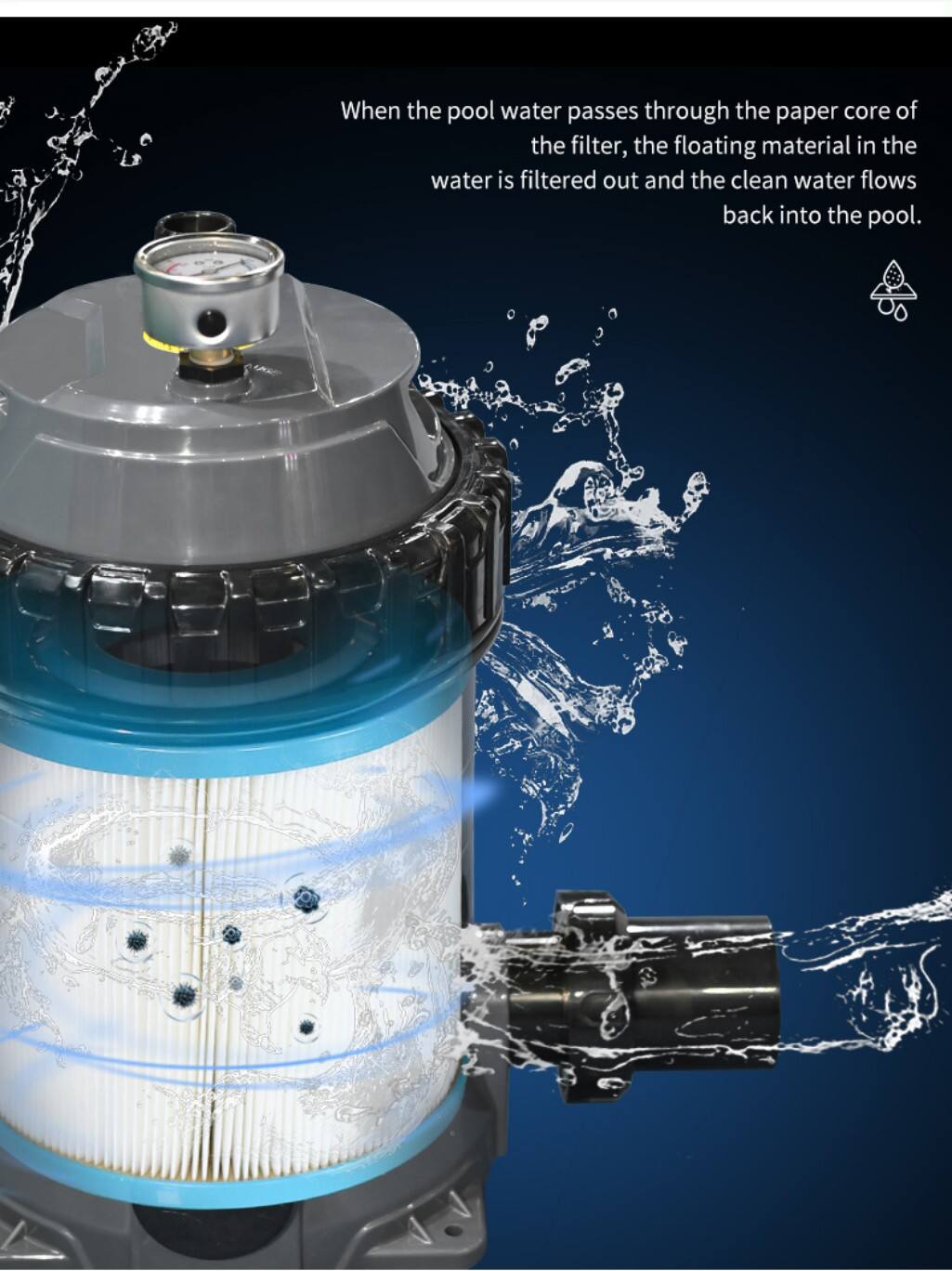

Cartridge filtration is an effective trouble-free proven method offiltration. pool water enters the filter and passes through a polyester single element cartridge. Suspended particles are tra-pped and the water is returned to the pool. As the build-up of dirt in the element increases, so the water pressure rises and the flow decreases. When the pressure reaches an unacceptable level the element must be removedand cleaned.


Product Details:

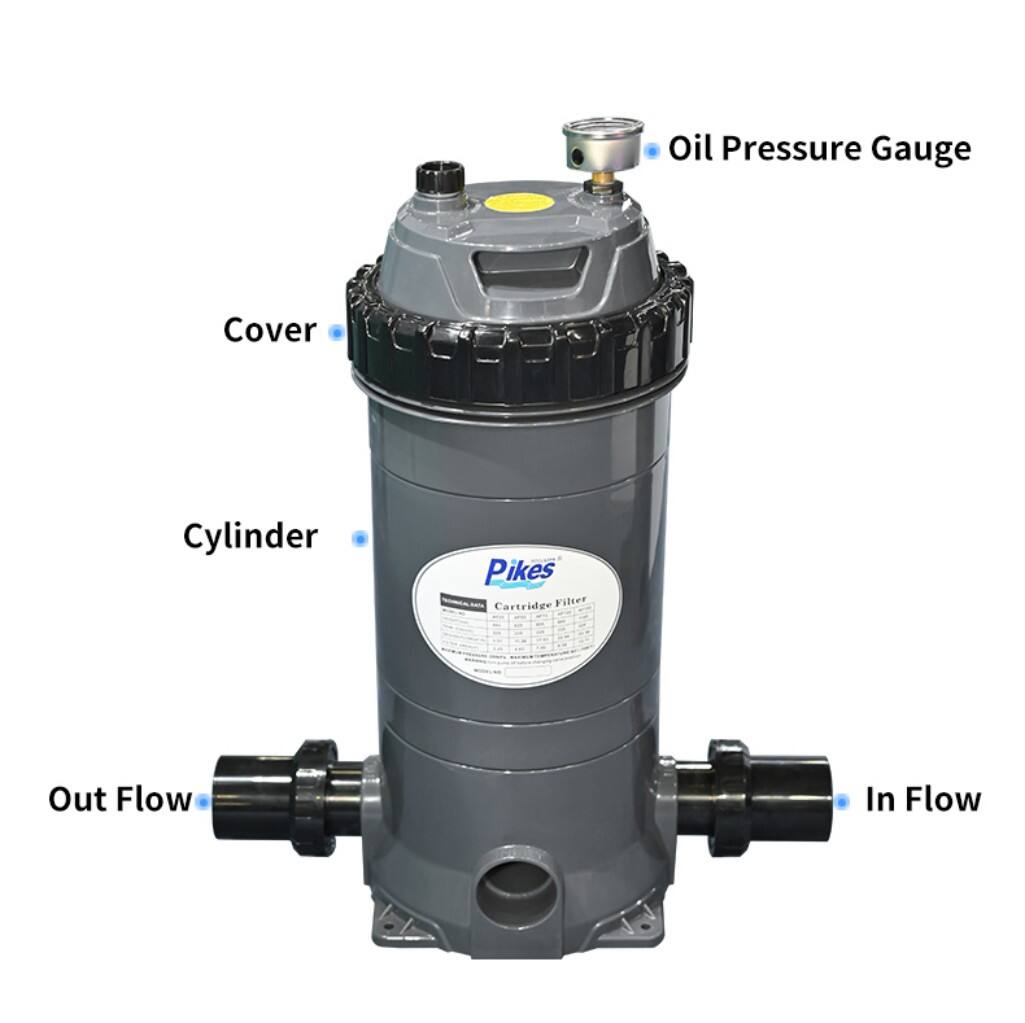

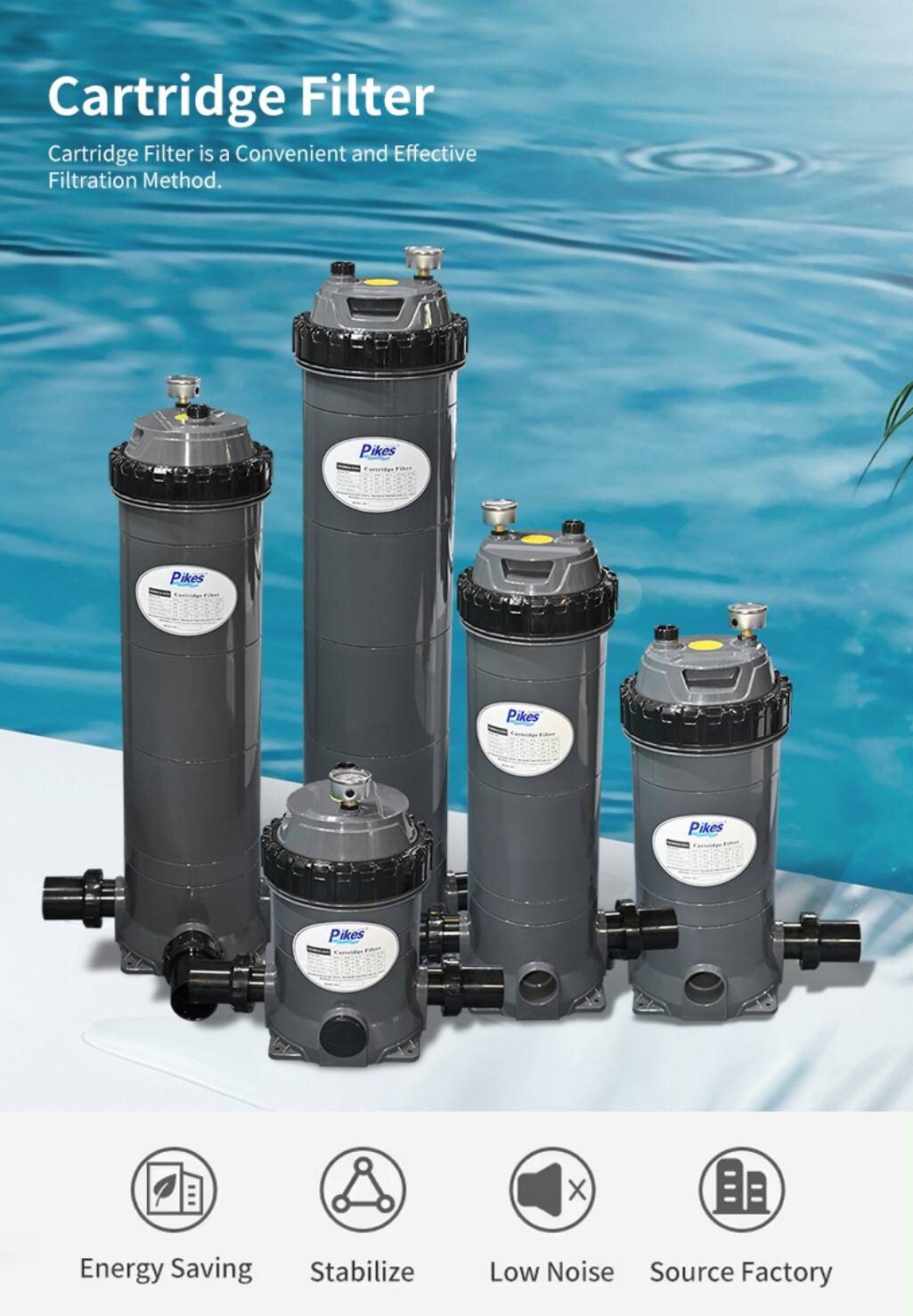

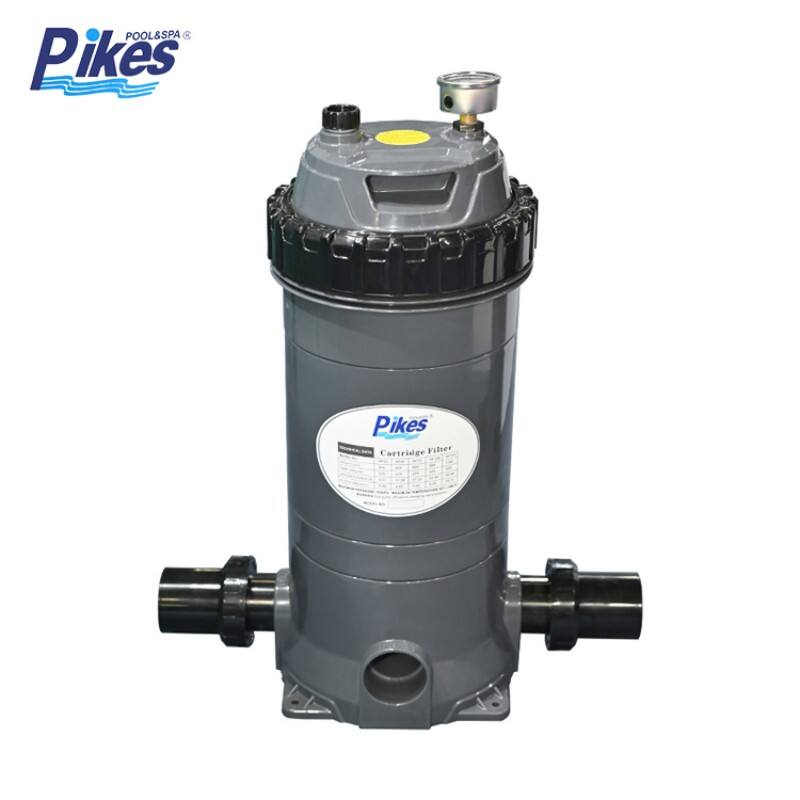

AF Cartridge Filter
| Technical Characteristics | Package Dimensions | ||||||||
| Model | High (mm) A | High (mm) B | Diameter (mm) C | Filter area (㎡) | Flow (m³/h) | Greatest pressure (kpa) | Long mm | Width mm | Hight mm |
| AF25 | 445 | 387 | 225 | 2.25 | 5.5 | 350 | 320 | 320 | 510 |
| AF50 | 625 | 567 | 225 | 4.63 | 11.4 | 350 | 320 | 320 | 690 |
| AF75 | 805 | 747 | 225 | 7 | 17 | 350 | 320 | 320 | 860 |
| AF100 | 985 | 927 | 225 | 9.38 | 22.9 | 350 | 320 | 320 | 1045 |
| AF150 | 1165 | 1107 | 225 | 13.72 | 33.4 | 350 | 320 | 320 | 1220 |

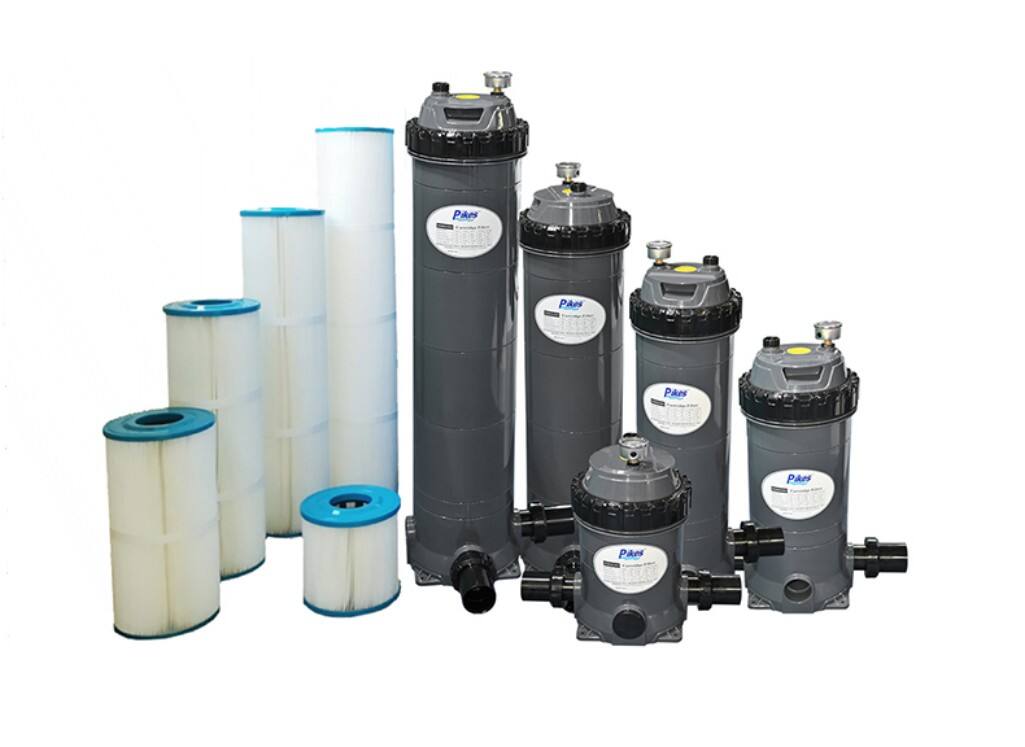

AF Catridge
| Model | Core diameter (mm) | Caliber (mm) | High (cm) | Filter material | Filtration accuracy (μm) |
| AF25 | φ183 | φ78 | 18.45 | White precision fabric polyEster fiber | 15 |
| AF50 | φ183 | φ78 | 36.45 | ||
| AF75 | φ183 | φ78 | 54.45 | ||
| AF100 | φ183 | φ78 | 72.45 | ||
| AF150 | φ183 | φ78 | 90.45 |

Applications:
Swimming Pool Filtration
Residential swimming pools
Hotel & resort pools
Commercial swimming pools
SPA & wellness facilities
Indoor and outdoor pools
