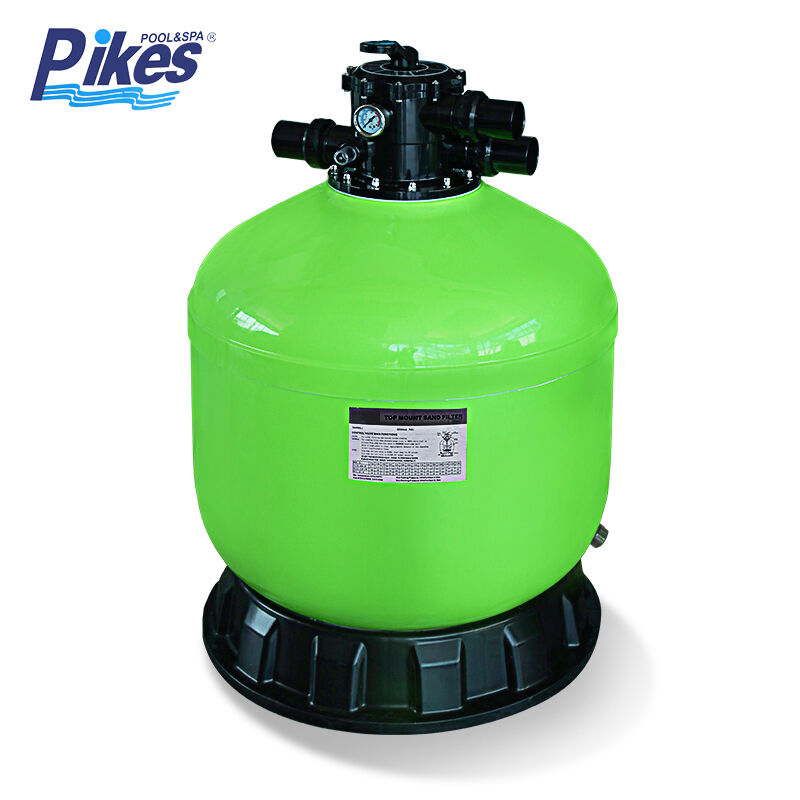

”GFT” Series Fiberglass Top Mount Sand Filter
| OEM | Available |
| Sample | Charge |
| Port | Huangpu, Guangzhou |
| Payment | T/T |
| Place of Origin | China |
| Shipping | Sea freight |
| Supply Ability | 10000 pieces per Month |
- Overview
- Recommended Products
Description:

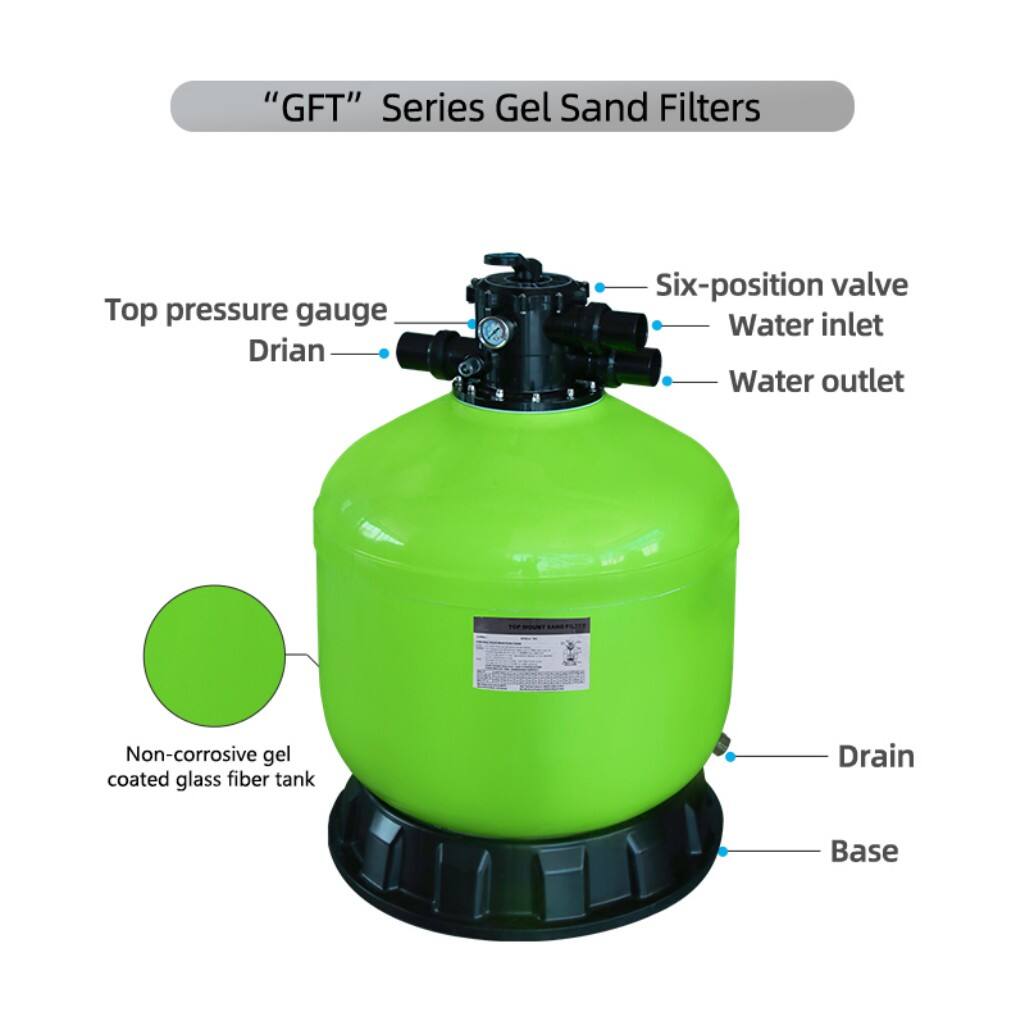

The GFT series tanks are non-corrosive, gel-coated glass fiber tanks with a smooth surface that can adapt to different climates. The surface of the tank is treated with sun protection, allowing it to operate in outdoor sunlight for a long time, making it suitable for residential and commercial swimming pools.
| Matrial | Fiberglass |
| Color | Green |
| Warraty | 1 Year |
| Suggested Size of Media | 1.0-2.0mm |
Specifications:

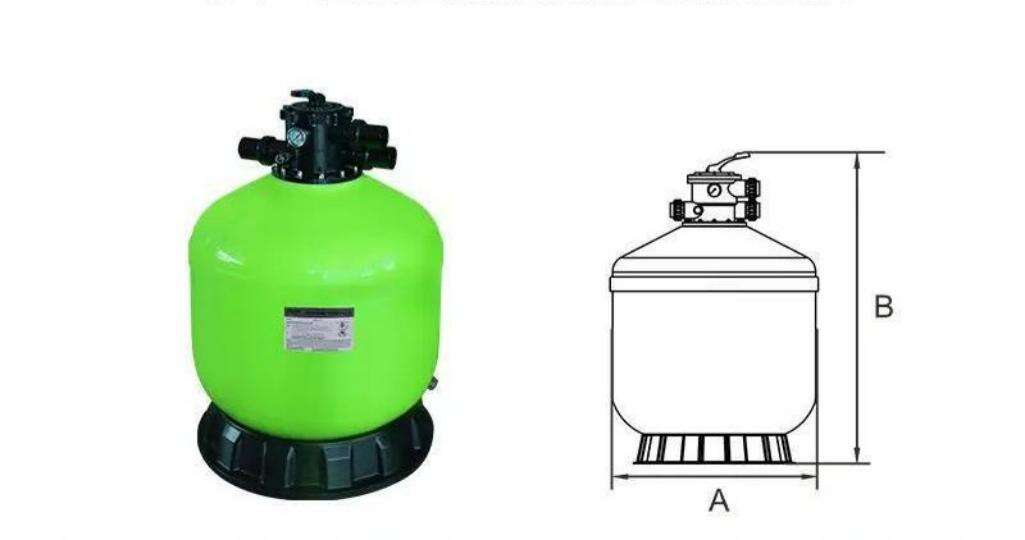

| Model | Filter Area (m²) | Valve Connections | Max Flow Rate | Gravel (kg) | A mm | B mm |
| GFT500 | 0.2 | 1.5 inch | 10.0 m³/h | 88 | 535 | 900 |
| GFT650 | 0.33 | 1.5 inch | 16.5 m³/h | 158 | 650 | 1000 |
| GFT750 | 0.44 | 2 inch | 22.0 m³/h | 260 | 750 | 1200 |
| GFT800 | 0.52 | 2 inch | 26.0 m³/h | 370 | 800 | 1280 |
| GFT900 | 0.64 | 2 inch | 32.0 m³/h | 422 | 900 | 1330 |
Highlight Features:
1.Max operating pressure 36psi/2.5bar
2.Max temperature of 43°C(109°F)
3.Maximun filtration velocity:50m3/h/m²
4.Universal standard of union connection provided
5.Suggested size of media:1-2mm
6.Dual layers of laterals
7.4"Sight glass
8.158mm manhole for servicing
9.2"bottom drain
Applications:
Residential swimming pool water filtration
Commercial swimming pool circulation system
SPA and hot tub filtration
Above-ground and in-ground swimming pools
Pool equipment room filtration system
Water treatment for fountains and water features
