"PSF"Series Fiberglass Sand Filter Combo
| OEM | Available |
| Sample | Charge |
| Port | Huangpu, Guangzhou |
| Payment | T/T |
| Place of Origin | China |
| Shipping | Sea freight |
| Supply Ability | 10000 pieces per Month |
- Overview
- Recommended Products
Description:

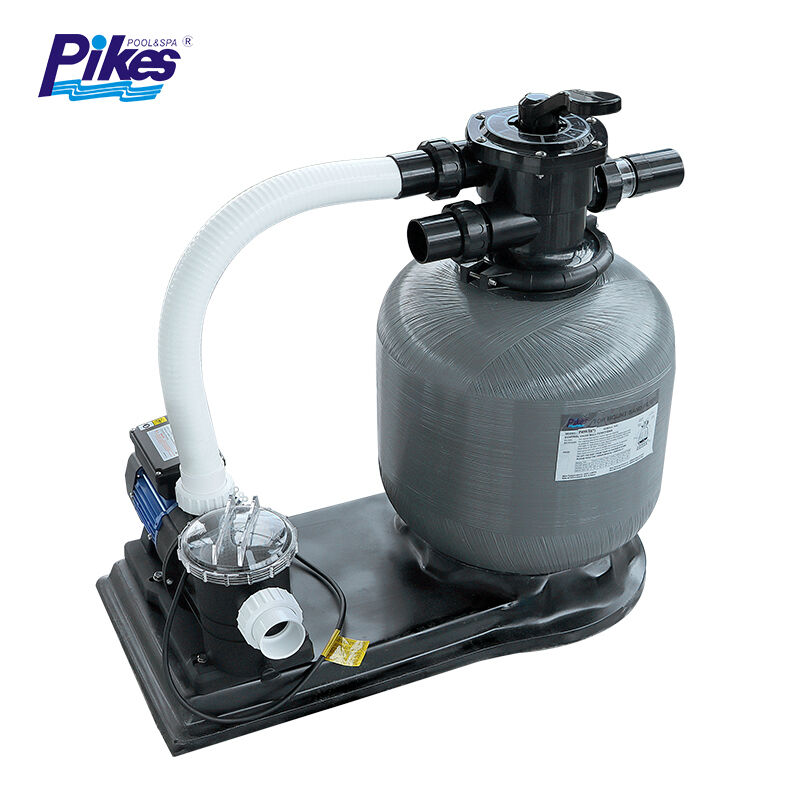

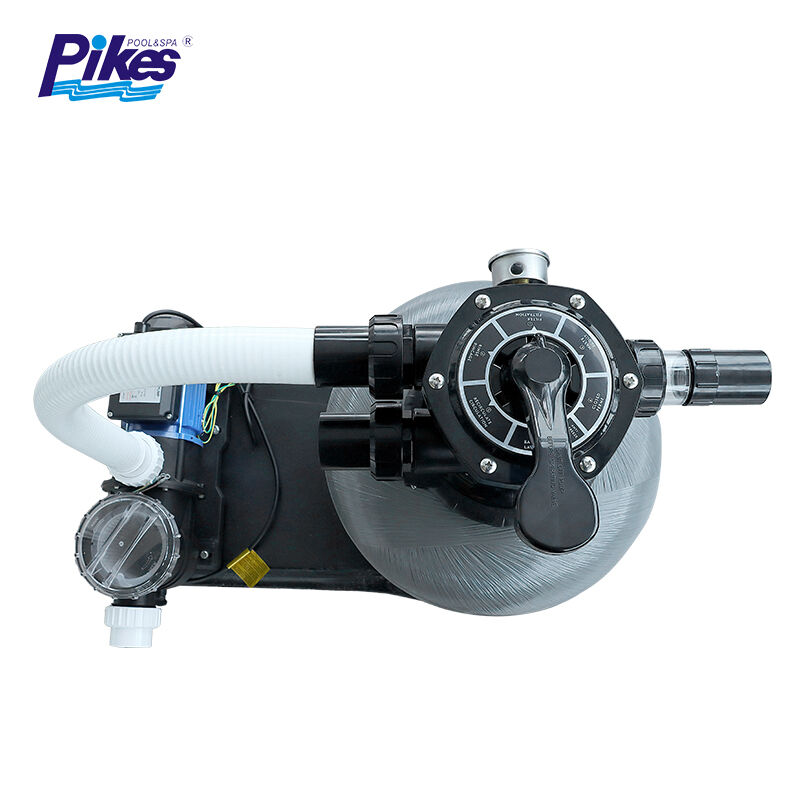

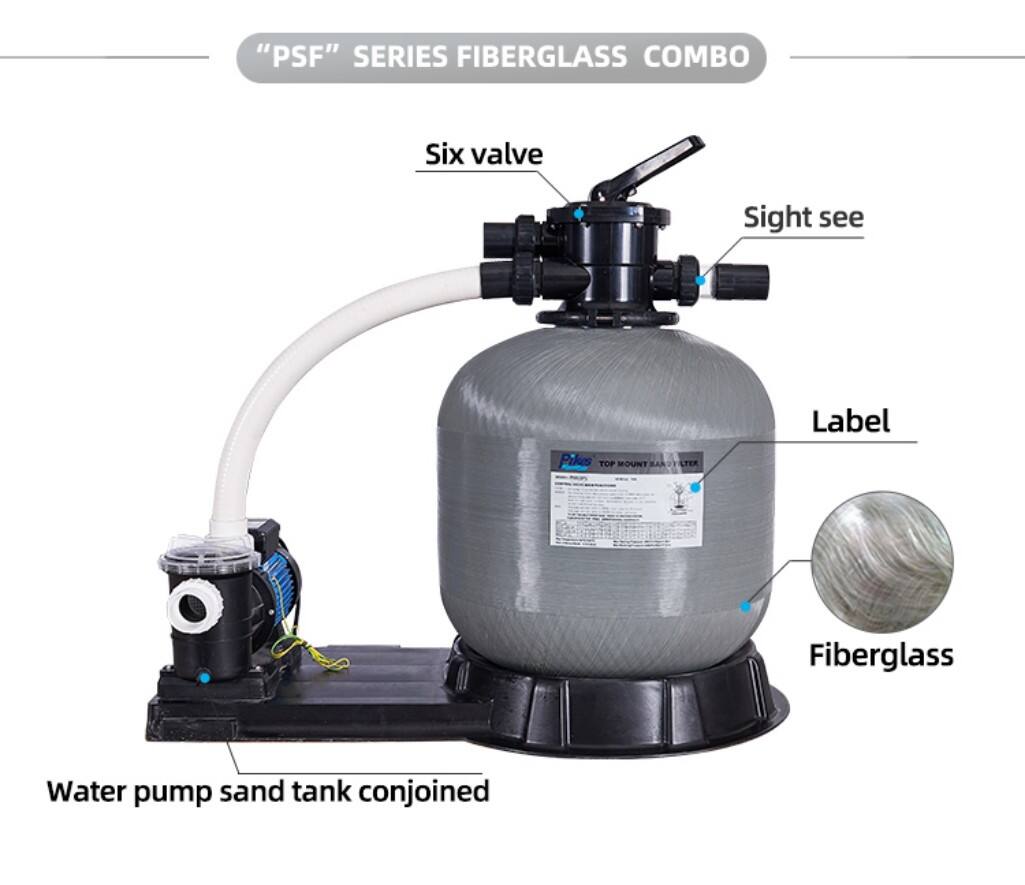

Designed for easy setup in domestic pools, the "PSF" Series Filtration Combo provides the perfect solution for homeowners seeking user-friendly operation and outstanding filtration performance. This system includes a top-mount fiberglass filter tank, a multiport valve, and swimming pool pumps securely attached to a sturdy base.
Specifications:

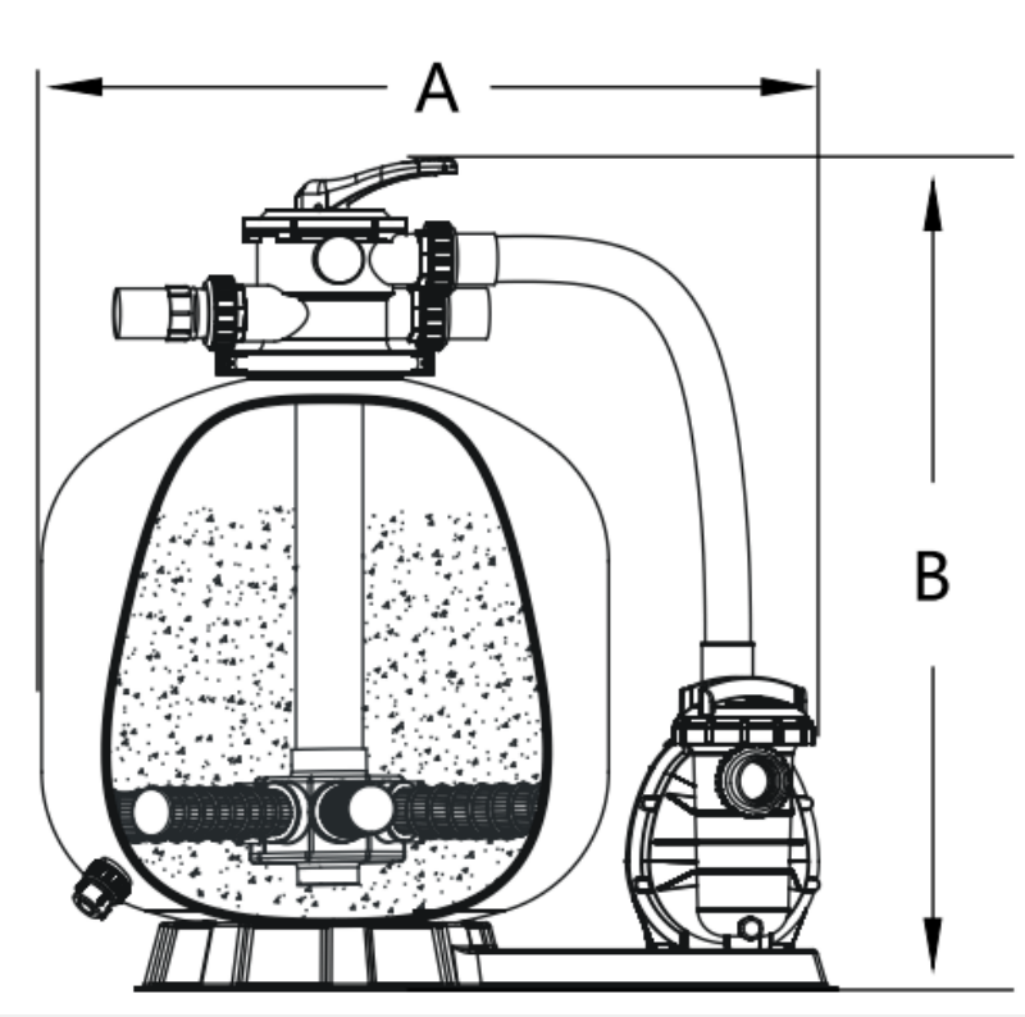

| Model | Max Flow Rate | Filter | Pump | Valve Connections | Sand(kg) | Height(mm) | Width(mm) |
| PSF400-6W | 6.48 m³/h | P400 | 0.50HP | 1.5inch, 50mm | 35 | 780 | 520 |
| PSF450-6W | 8.10 m³/h | P450 | 0.75HP | 1.5inch, 50mm | 45 | 820 | 555 |
| PSF525-6W | 11.1 m³/h | P525 | 1.0HP | 1.5inch, 50mm | 85 | 880 | 630 |
| PSF625-6W | 15.6 m³/h | P625 | 1.2HP | 1.5inch, 50mm | 150 | 1010 | 740 |
Highlight Features:

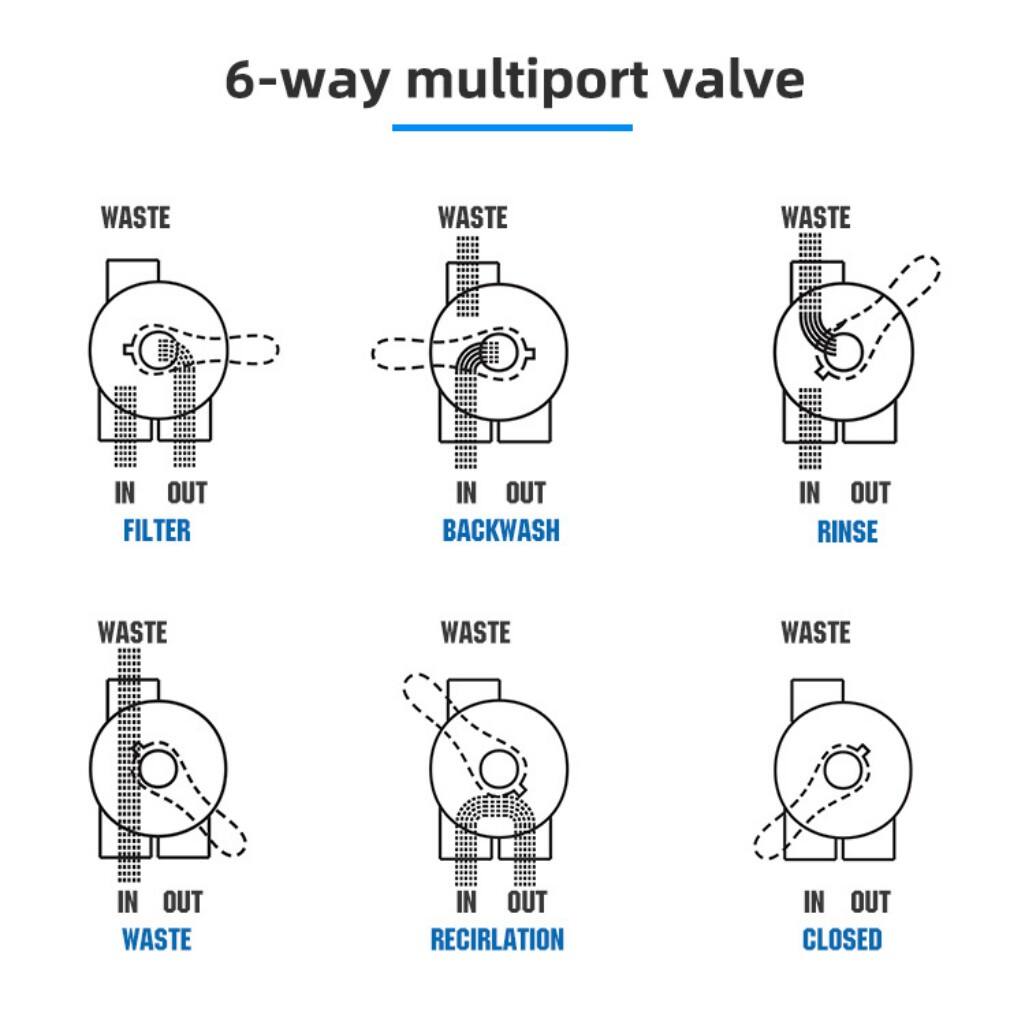

1.6-Way valve
2.Max operating pressure 36psi/2.5bar
3.Max temperature of 43°C (109°F)
4.Universal standard of union connection provided
5.Suggested size of media:1-2mm
Applications:
Swimming Pool Filtration
Residential swimming pools
Hotel & resort pools
Commercial swimming pools
SPA & wellness facilities
Indoor and outdoor pools
