"S & SD"Series Top Mount Plastic Filters
| OEM | Available |
| Sample | Charge |
| Port | Huangpu, Guangzhou |
| Payment | T/T |
| Place of Origin | China |
| Shipping | Sea freight |
| Supply Ability | 10000 pieces per Month |
- Overview
- Recommended Products
Description:

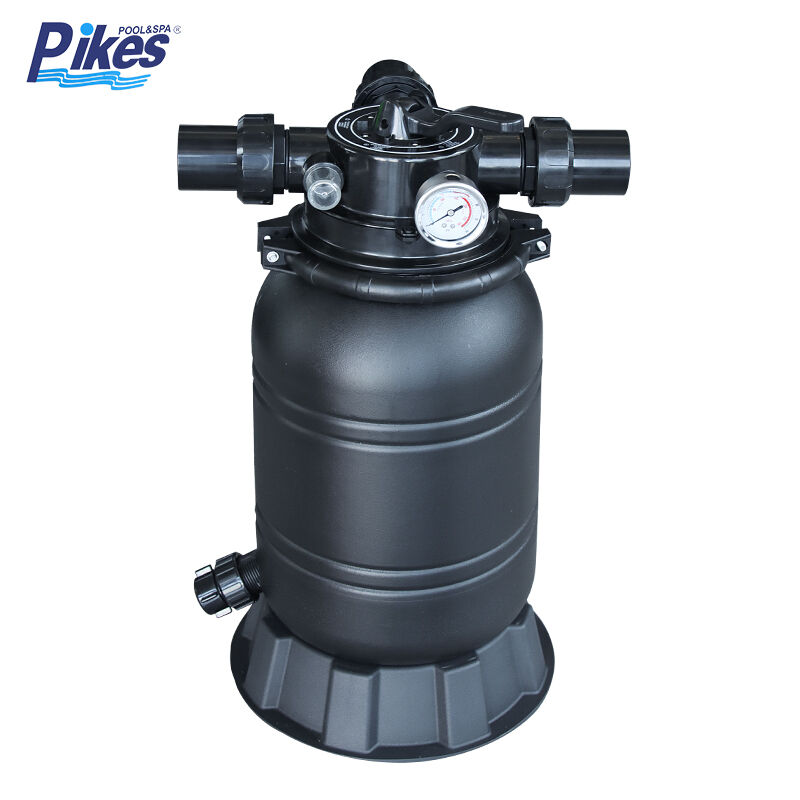

The S&SD Series Filters are designed to withstand years of prolonged exposure to sunlight. Featuring a UV-resistant, one-piece blow-molded filter tank, they have gained industry recognition not only for their durable construction but also for their reliable performance and cost-effectiveness.

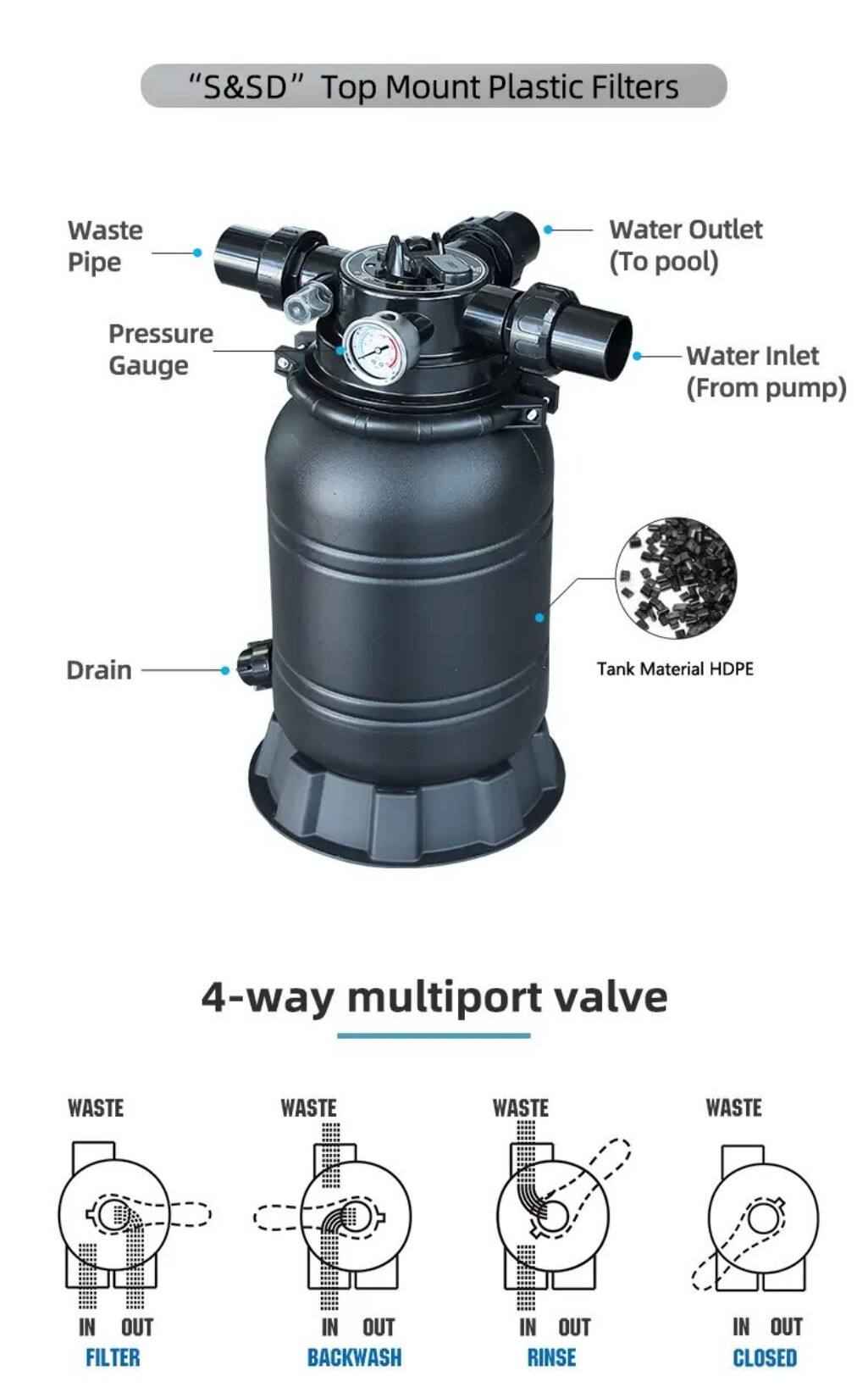

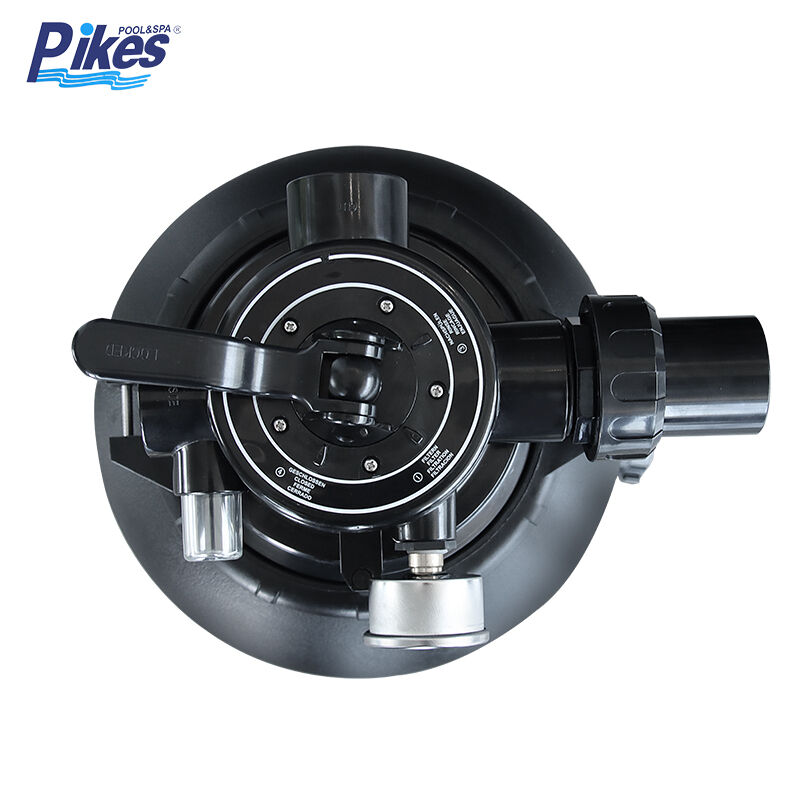

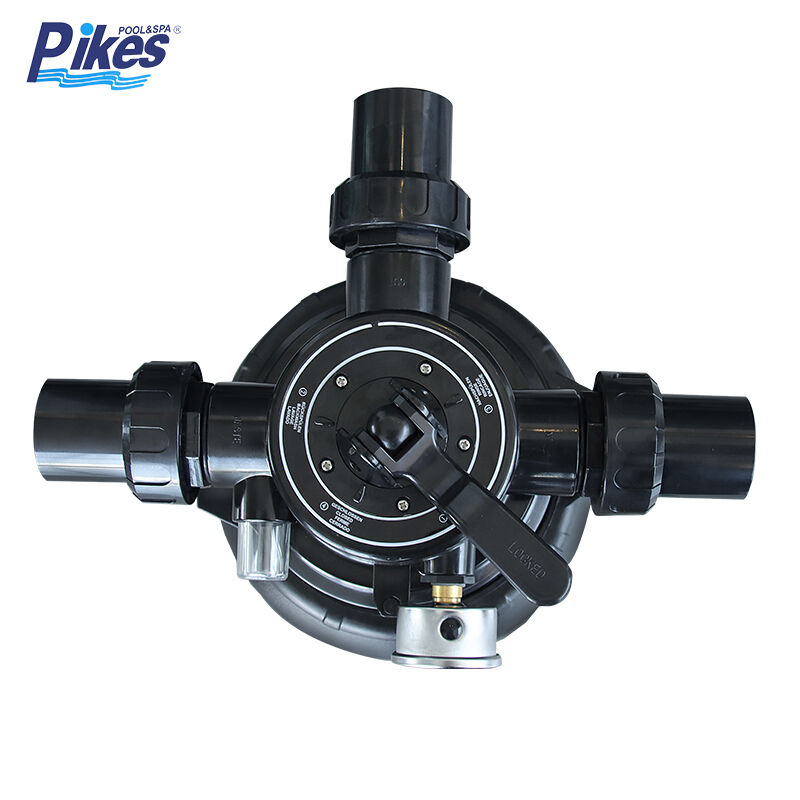

| Valve | 4-Way valve |
| Max operating pressure | 28psi/200kPa |
| Max temperature | 40°C(104°F) |
| Standard | Universal standard of union connection provided |
| Suggested size of media | 1-2mm |
Specifications:

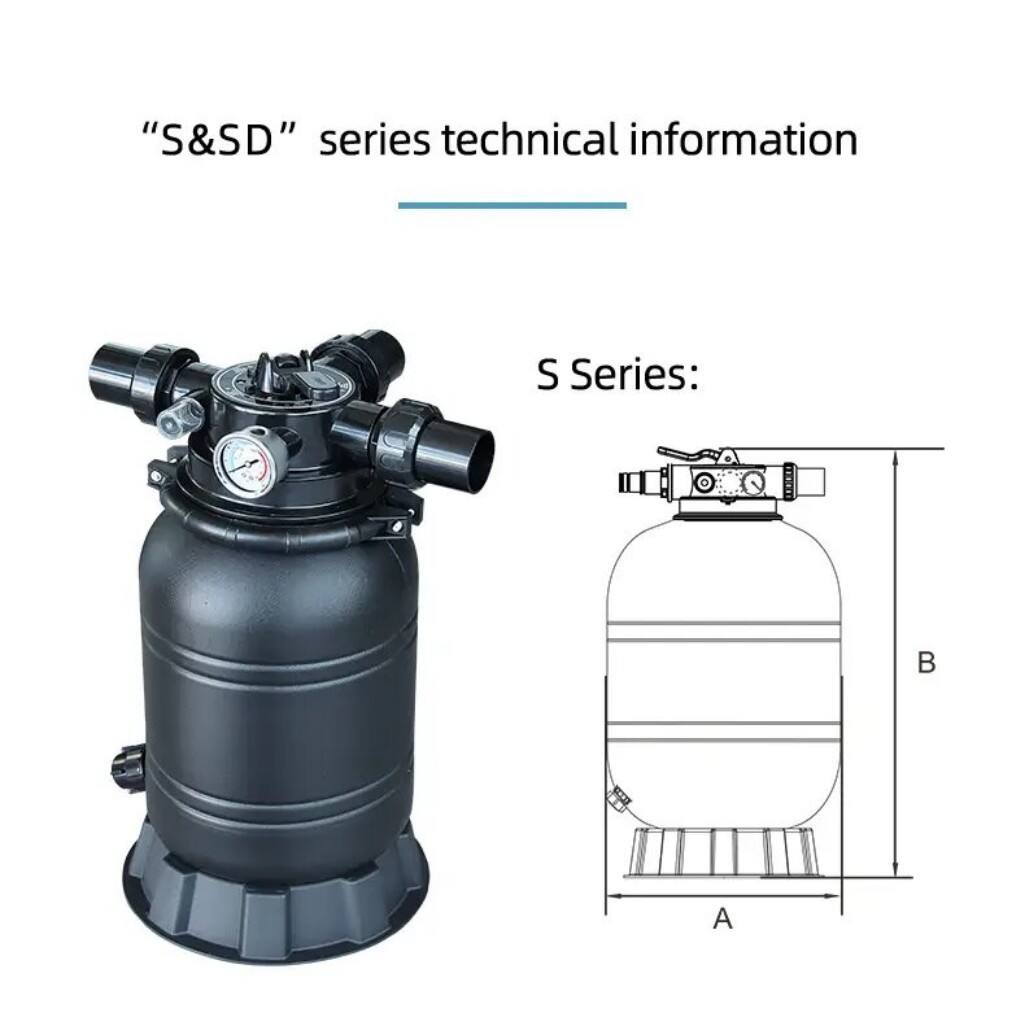

| Model | A mm | B mm | Filter Area (m²) | Valve Connections | Max Flow Rate | Gravel (kg) |
| S250 | 250 | 540 | 0.06 | 1.5 inch | 2.9 m/h | 14 |
| S300 | 300 | 560 | 0.08 | 1.5 inch | 3.5 m/h | 17 |
| SD250 | 250 | 490 | 0.06 | 1.5 inch | 2.9 m/h | 14 |
| SD300 | 300 | 510 | 0.08 | 1.5 inch | 3.5 m/h | 17 |
Highlight Features:
1.4-Way valve
2.Max operating pressure 28psi/200kPa
3.Max temperature of 40°C(104°F)
4.Universal standard of union connection provided
5.Suggested size of media:1-2mm
Applications:
Residential swimming pool water filtration
Commercial swimming pool circulation system
SPA and hot tub filtration
Above-ground and in-ground swimming pools
Pool equipment room filtration system
Water treatment for fountains and water features
