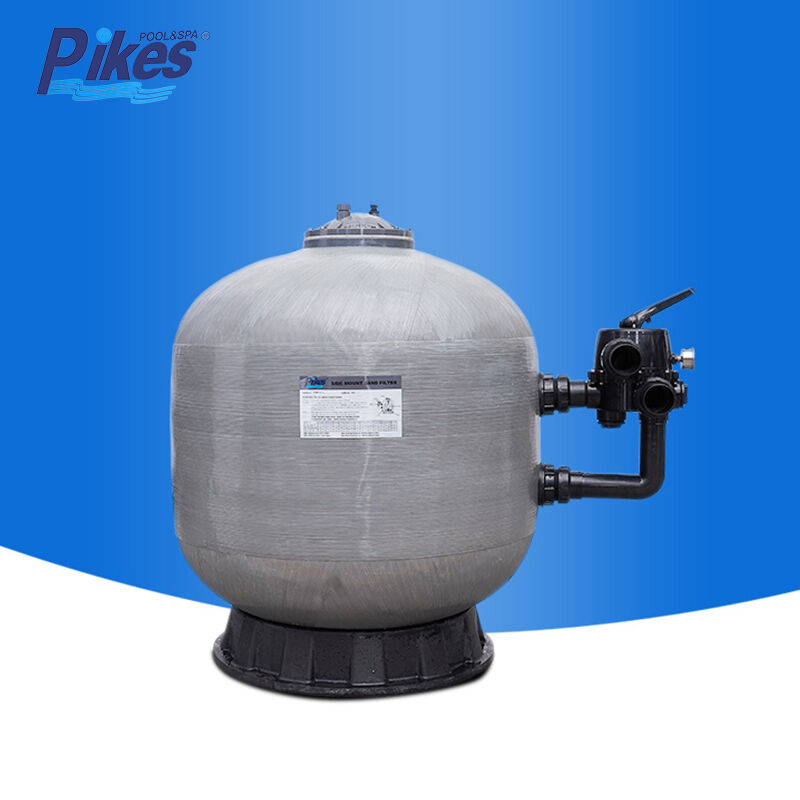

"SC" Series Side Mount Plastic Filters
| OEM | Available |
| Sample | Charge |
| Port | Huangpu, Guangzhou |
| Payment | T/T |
| Place of Origin | China |
| Shipping | Sea freight |
| Supply Ability | 10000 pieces per Month |
- Overview
- Recommended Products
Description:
The SC Series Filters are designed to endure years of prolonged exposure to sunlight. Featuring a UV-resistant, one-piece blow-molded filter tank, they have gained industry recognition not only for their exceptional durability but also for their reliable performance and cost-effectiveness.
| Color | Black, blue |
| Tank Material | HDPE |
| Max operating pressure | 28psi/200kPa |
| Max temperature | 40°C(104°F) |
| Standard | Universal standard of union connection provided |
| Suggested size of media | 1-2mm |
Specifications:

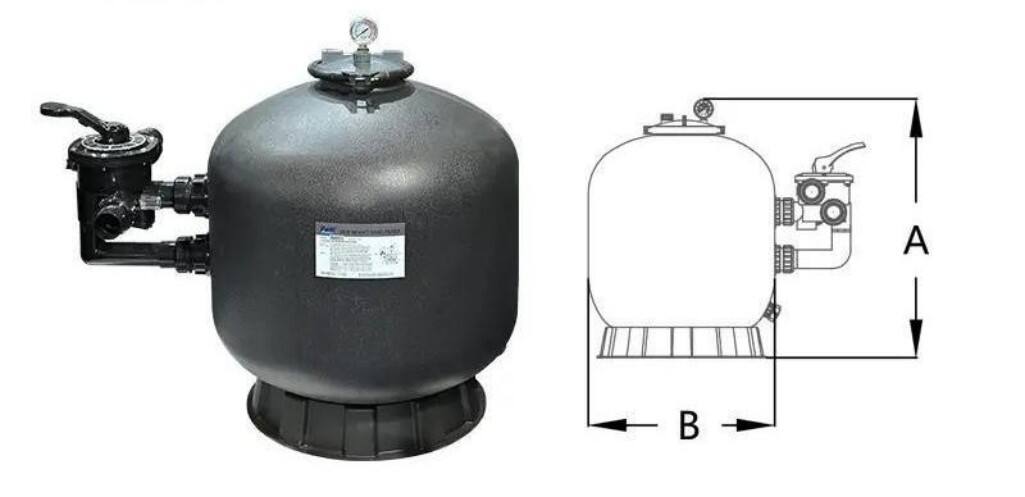

| Model | Filter Area (m²) | Valve Connections | Max Flow Rate | Gravel (kg) | A mm | B mm |
| SC450 | 0.16 | 1.5 inch | 7.8 m³/h | 45 | 660 | 450 |
| SC525 | 0.22 | 1.5 inch | 10.8 m³/h | 85 | 710 | 535 |
| SC650 | 0.31 | 1.5 inch | 15.3 m³/h | 145 | 800 | 635 |
| SC700 | 0.39 | 1.5 inch | 19.2 m³/h | 210 | 870 | 710 |
Highlight Features:
1.Tank Material HDPE
2.Max operating pressure 28psi/200kPa
3.Max temperature of 40°C(104°F)
4.Universal standard of union connection provided
5.Suggested size of media:1-2mm
Applications:
Residential swimming pool water filtration
Commercial swimming pool circulation system
SPA and hot tub filtration
Above-ground and in-ground swimming pools
Pool equipment room filtration system
Water treatment for fountains and water features
