- Max operating pressure 36psi/2.5bar
- Max temperature of 43"C(109*F)
- Universal standard of union connection provided
- Suggested size of media:1-2mm
Description:

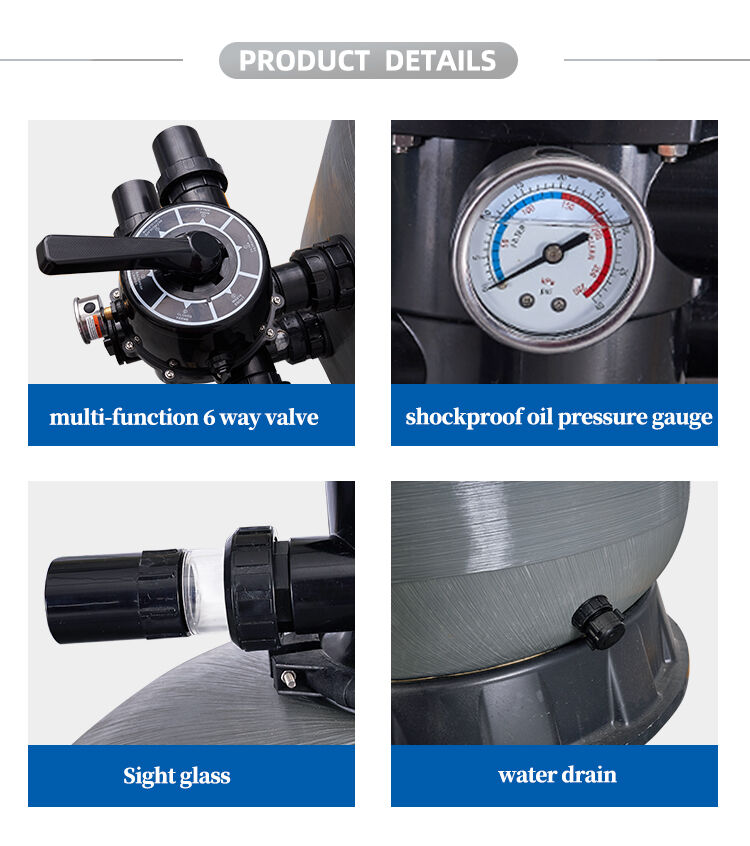

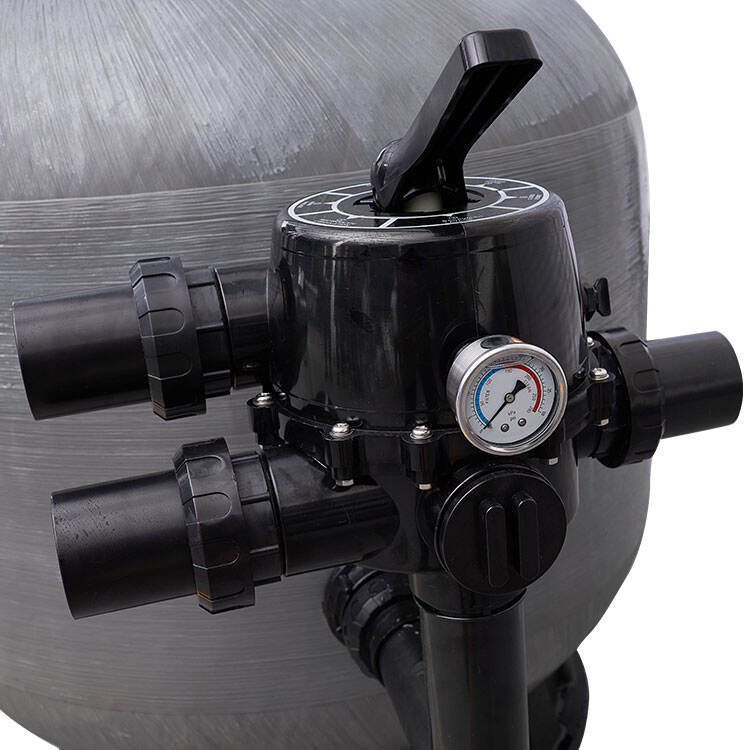

Bobbin-wound fiberglass reinforced tank is still the most popular standard in the industry after all. With Uv-resistant surface finished, it is able to operate under prolong sunlight for years of reliability. “PS” series filters are equipped with a six-position, clamp and screw styles muliport vale and ABS laterals.
OEM： |
Available |
Sample： |
Charges |
Port： |
Huangpu, Guangzhou |
Payment： |
T/T |
Place of Origin： |
China |
Shipping： |
Sea freight |
Supply Ability： |
10000 pieces per Month |
Highlight Features:
Specifications:

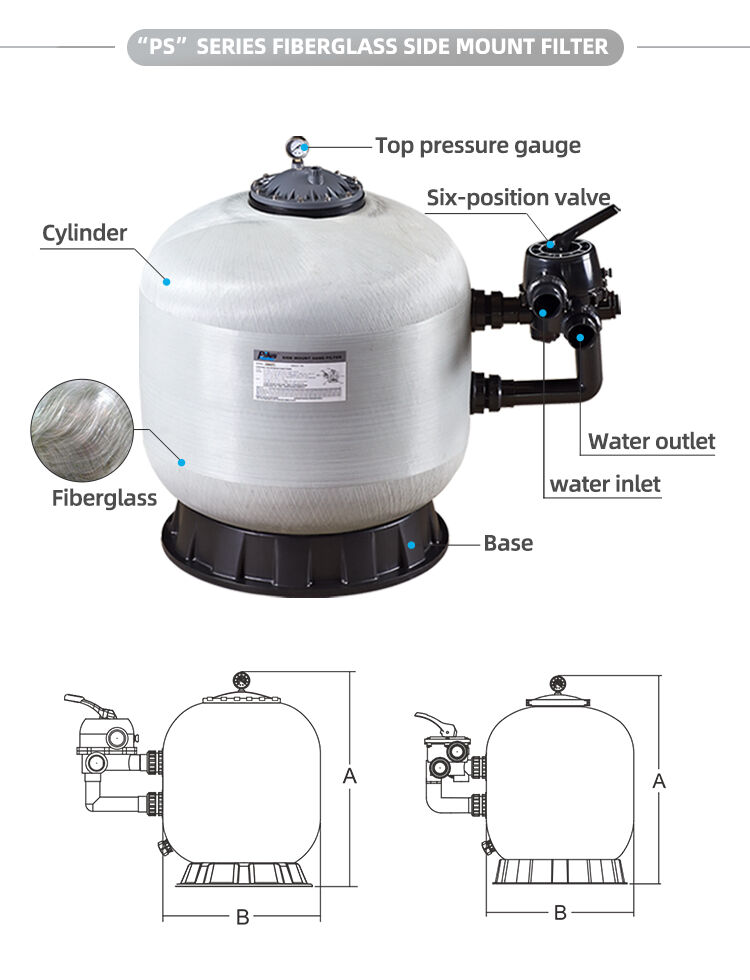

Model |
Filter Area (m²) |
Valve Connections |
Max Flow Rate |
Gravel (kg) |
A mm |
B mm |
|
PS525 |
0.22 |
1.5 inch |
50mm |
12 m³/h |
85 |
690 |
525 |
PS625 |
0.3 |
1.5 inch |
50mm |
16 m³/h |
150 |
790 |
625 |
PS700 |
0.4 |
1.5 inch |
50mm |
20 m³/h |
210 |
890 |
700 |
PS700B |
0.4 |
2 inch |
63mm |
21 m³/h |
215 |
930 |
700 |
PS750 |
0.45 |
2 inch |
63mm |
23 m³/h |
300 |
950 |
750 |
PS800 |
0.5 |
2 inch |
63mm |
25 m³/h |
355 |
1060 |
800 |
PS900 |
0.64 |
2 inch |
63mm |
31 m³/h |
470 |
1120 |
900 |
PS1000 |
0.79 |
2 inch |
63mm |
36 m³/h |
620 |
1210 |
1000 |
PS1100 |
0.96 |
2 inch |
63mm |
42 m³/h |
800 |
1290 |
1100 |
PS1200 |
1.13 |
2 inch |
63mm |
45 m³/h |
900 |
1310 |
1200 |
PS1400 |
1.54 |
2 inch |
63mm |
56 m³/h |
1350 |
1600 |
1400 |
Applications:
Residential swimming pool water filtration
Commercial swimming pool circulation system
SPA and hot tub filtration
Above-ground and in-ground swimming pools
Pool equipment room filtration system
Water treatment for fountains and water features
