Description:
NEW "WPC" series swimming pool pump is designed for medium head installation in medium or domestic pool. 1.5 inch suction and discharge port with transparent lid. It operates at a low decibel and easy maintenance.
Hightlight Features:
1.Asynchronous, two poles
2.Class insulation:130
3.IPX5 waterproof standard
4.Built-in thermal protection
5.Overload protection
6.Available for 50Hz or 60Hz with 220v/380v/110v
7.Special design union compatible for both lmperial and Metric measurement standard

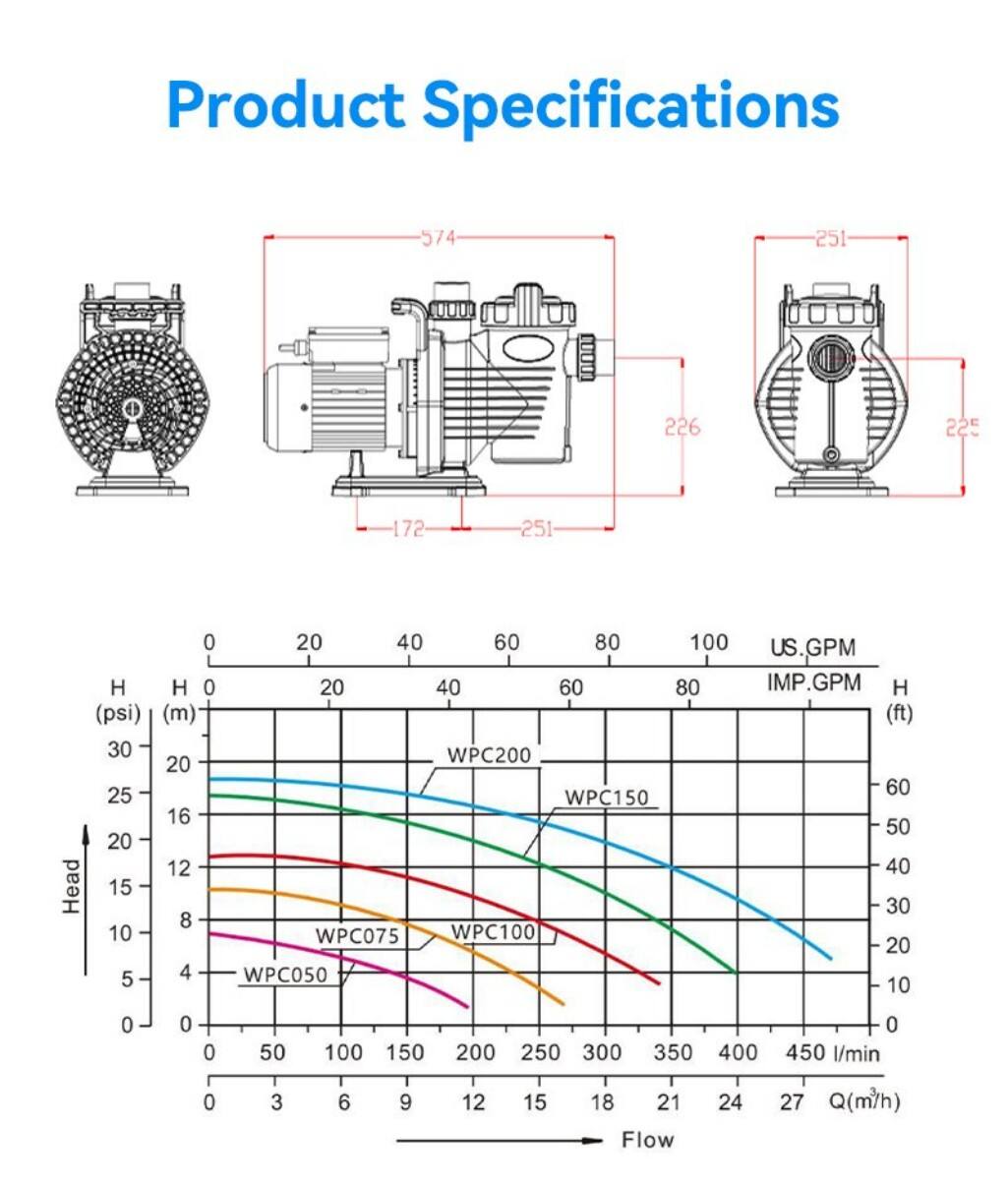

Technical Characteristics:
| Model | Power(P1) | Qmax | Hmax | Voltage | Fitting size | |
| KW | HP | (l/min) | (m) | (V) | (mm) | |
| WPC050 | 0.37 | 0.5 | 195 | 7 | 220-240/50 | 48.5 or 50 |
| WPC075 | 0.55 | 0.75 | 255 | 10 | 220-240/50 | 48.5 or 50 |
| WPC100 | 0.75 | 1 | 340 | 12.5 | 220-240/50 | 48.5 or 50 |
| WPC150 | 1.1 | 1.5 | 390 | 17.5 | 220-240/50 | 48.5 or 50 |
| WPC200 | 1.5 | 2 | 470 | 18.5 | 220-240/50 | 48.5 or 50 |
Applications:
Residential swimming pools
Domestic swimming pool circulation system
Medium-size swimming pools
Villa and private house pools
Spa pools and water circulation systems
Pool filtration and water treatment systems
