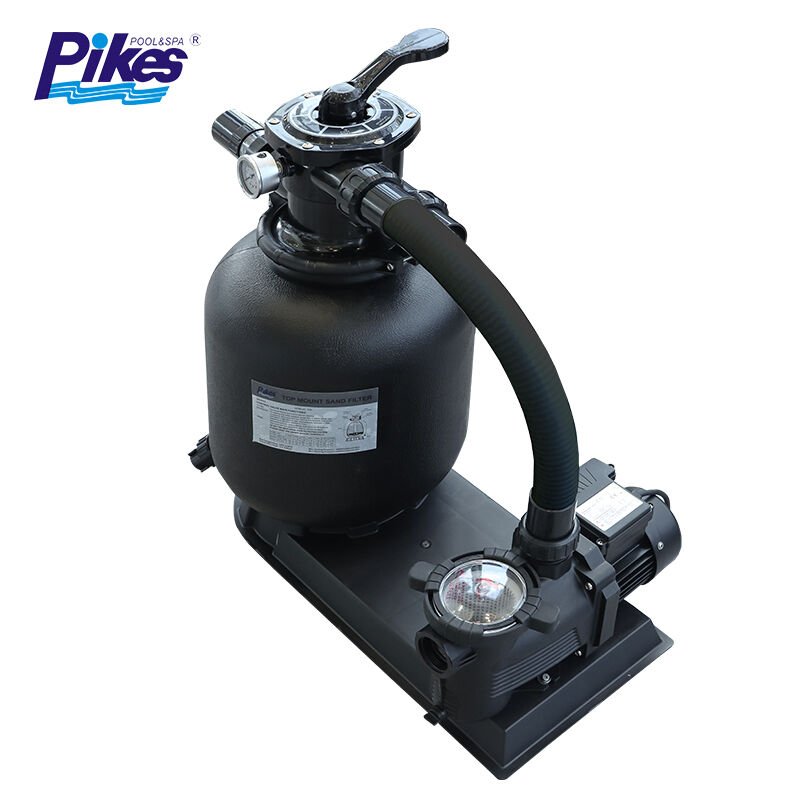

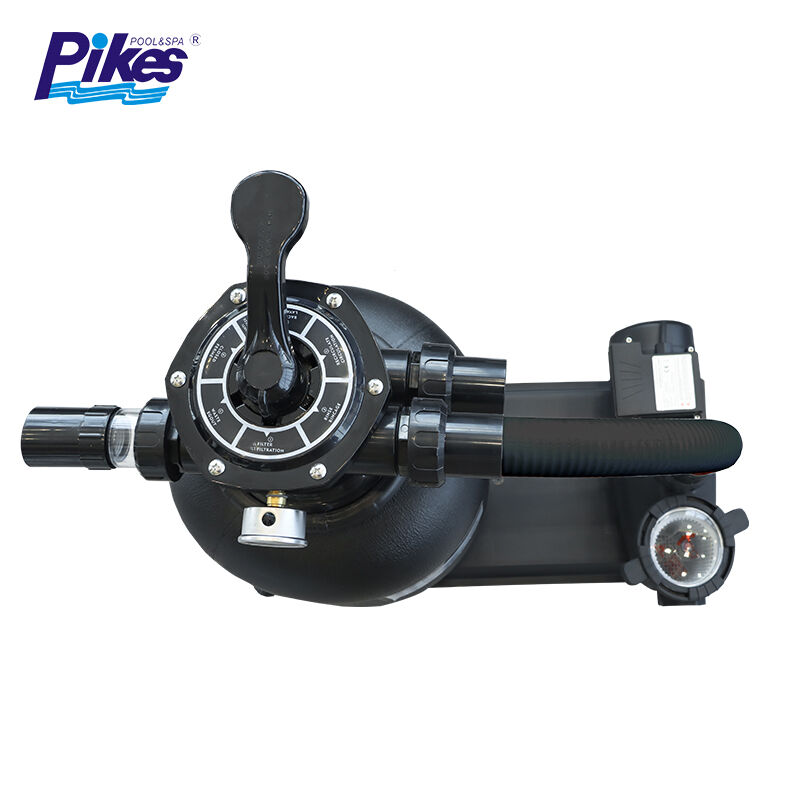

"PSY"Series Plastic Filter Combo
| OEM | Available |
| Sample | Charge |
| Port | Huangpu, Guangzhou |
| Payment | T/T |
| Place of Origin | China |
| Shipping | Sea freight |
| Supply Ability | 10000 pieces per Month |
- Overview
- Recommended Products
Description:

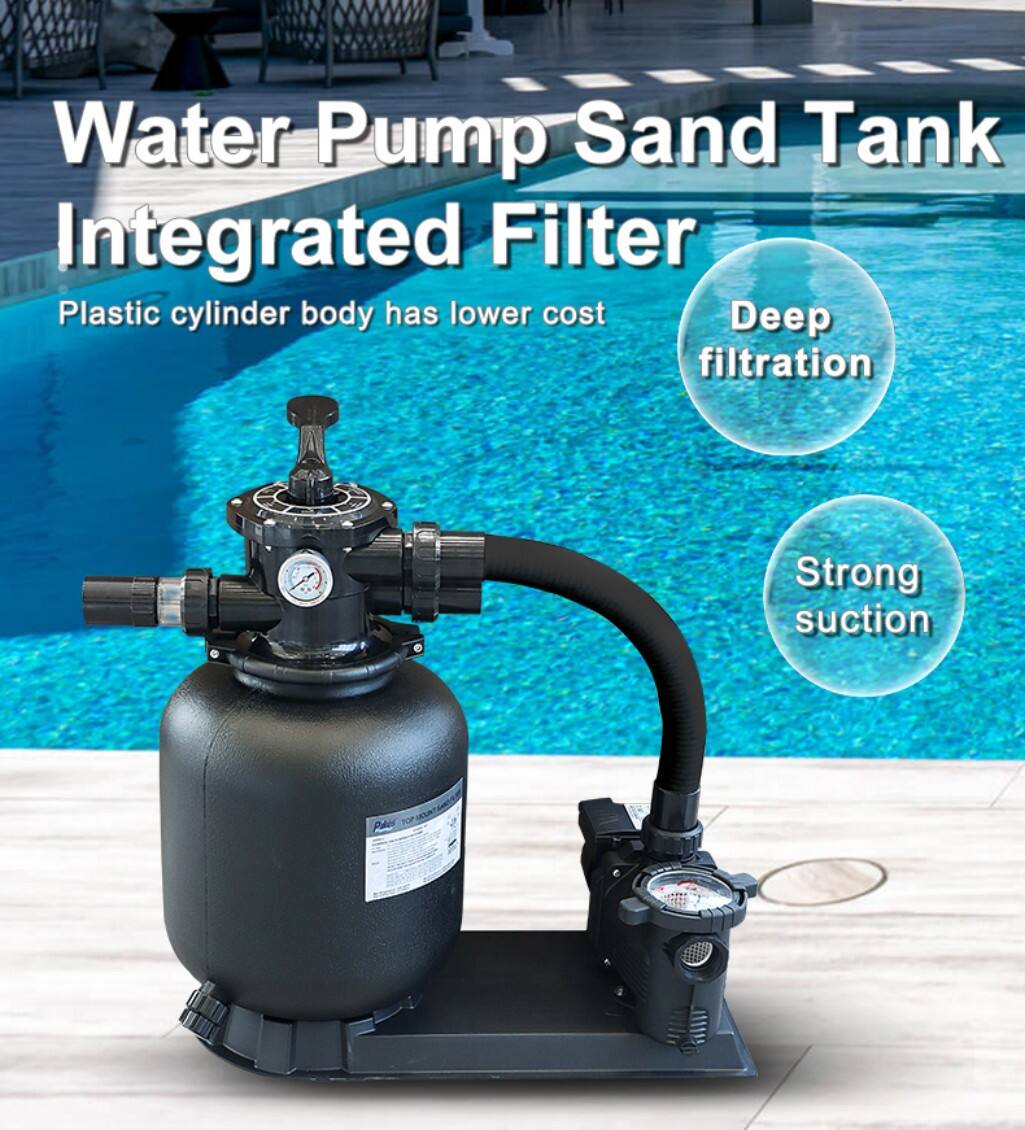

The PSY Series Filters are built to endure years of prolonged sunlight exposure. Featuring a UV-resistant, one-piece blow-molded filter tank, they have gained industry recognition not only for their exceptional durability but also for their reliable performance and cost-effectiveness.
| Valve | 4-Way valve |
| Max operating pressure | 28psi/200kPa |
| Max temperature | 40°C(104°F) |
| Standard | Universal standard of union connection provided |
| Suggested size of media | 1-2mm |
Specifications:

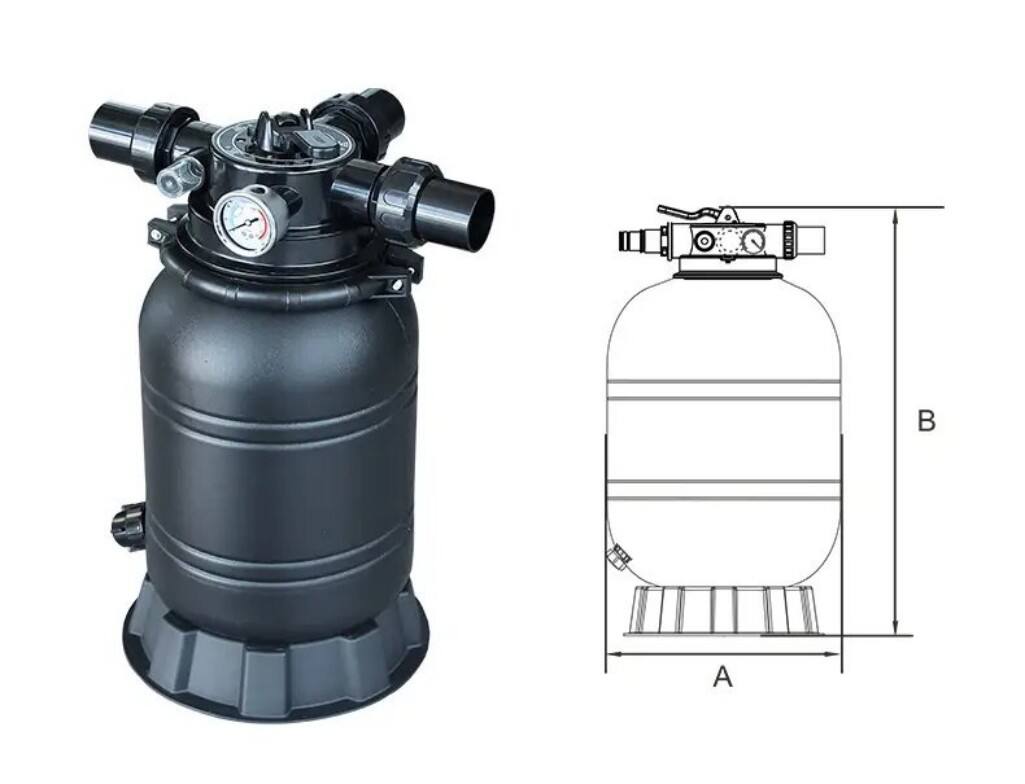

| Model | Max Flow Rate | Filter | Pump | Valve Connections | Sand (kg) | A(mm) | B(mm) |
| PSY350-4W | 4.32 m³/h | S350 | 0.33HP | 1.5"/50mm | 20 | 685 | 645 |
| PSY400-4W | 6.12 m³/h | S400 | 0.5HP | 1.5"/50mm | 35 | 710 | 650 |
Highlight Features:
1.Tank Material HDPE
2.Max operating pressure 28psi/200kPa
3.Max temperature of 40°C(104°F)
4.Universal standard of union connection provided
5.Suggested size of media:1-2mm
Applications:
Residential swimming pool water filtration
Commercial swimming pool circulation system
SPA and hot tub filtration
Above-ground and in-ground swimming pools
Pool equipment room filtration system
Water treatment for fountains and water features
