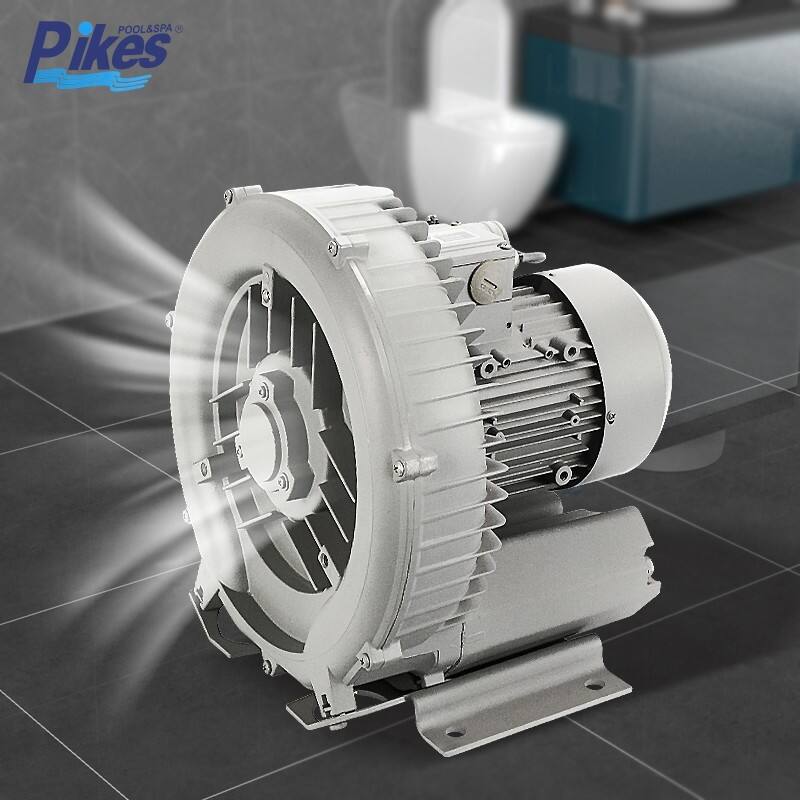

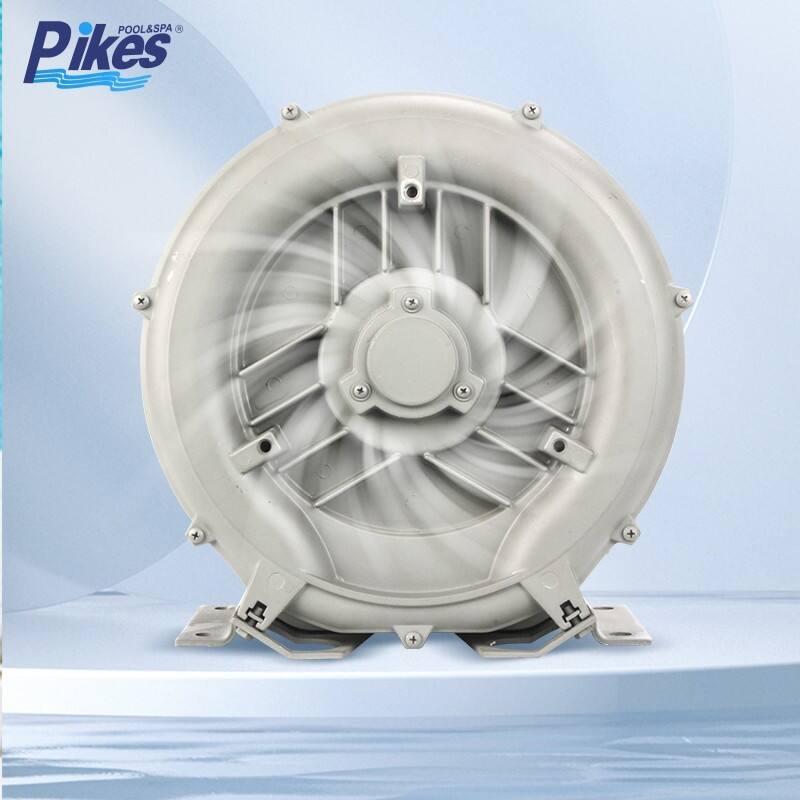

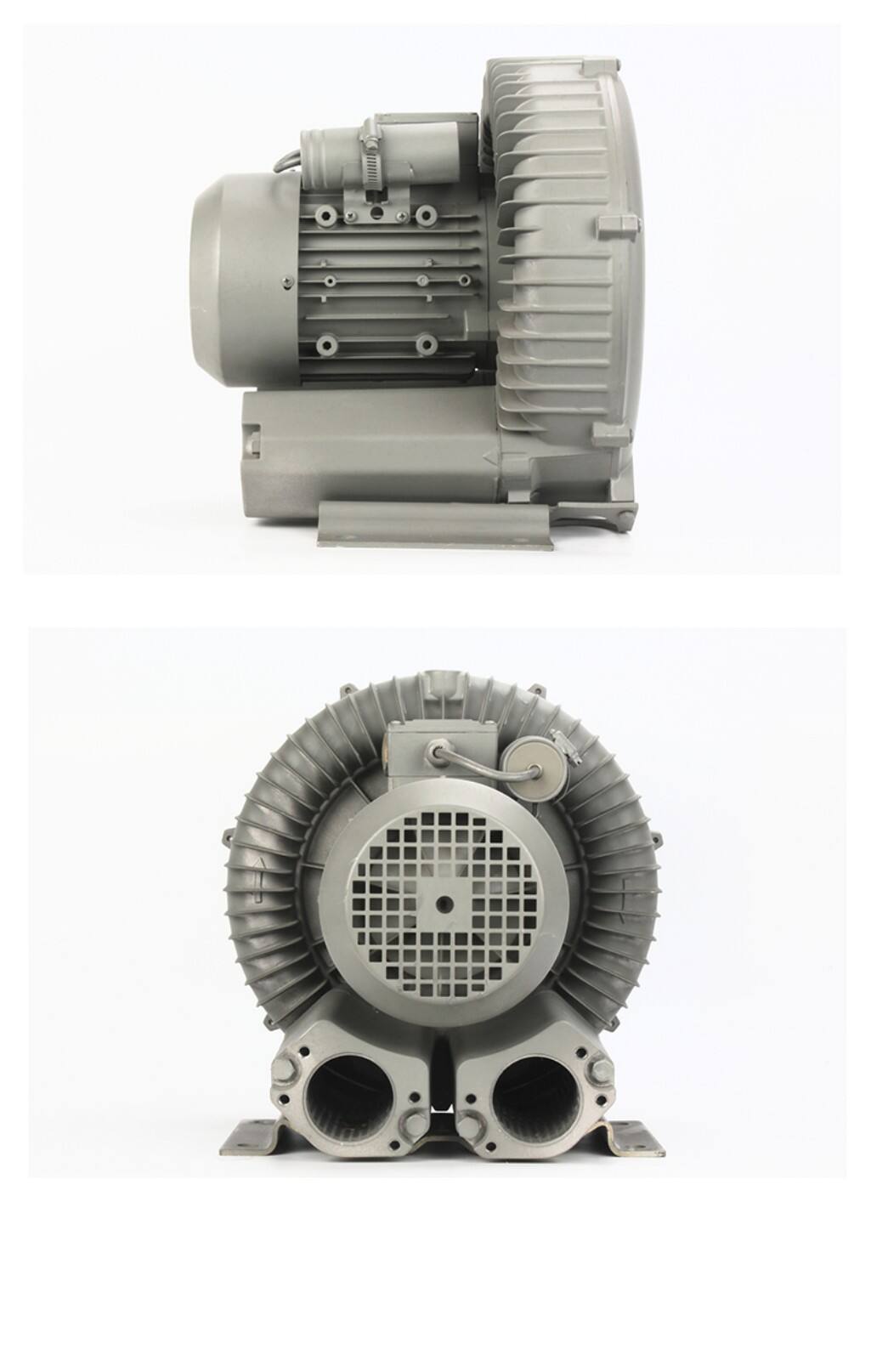

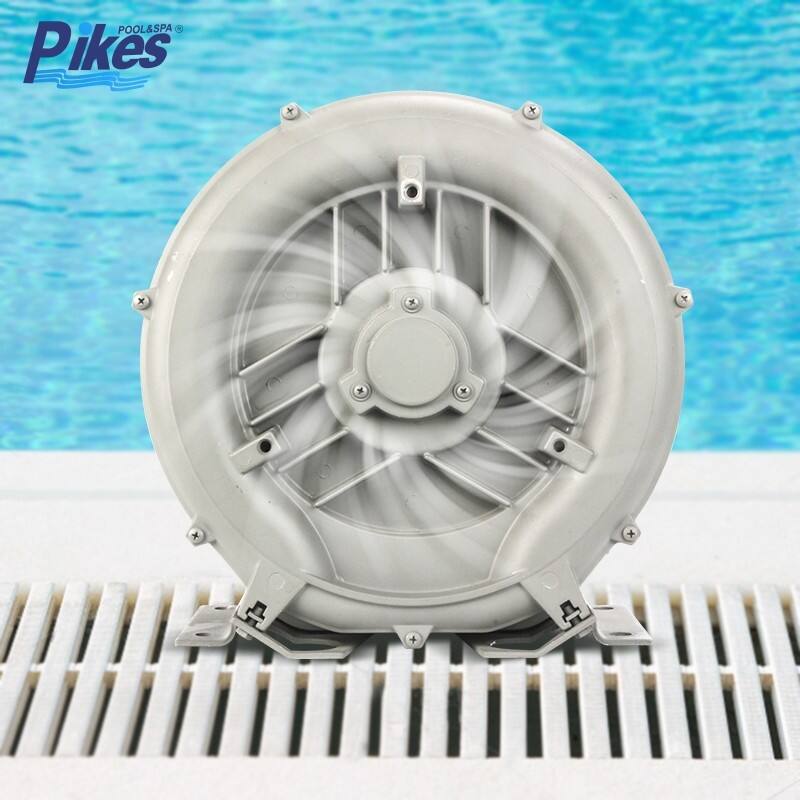

Air Blower Pool Pump 220V 1PH Industrial High Pressure Vortex Vacuum Pump Dry Air Blower For Industrial Machine

Air Blower Pool Pump 220V 1PH Industrial High Pressure Vortex Vacuum Pump Dry Air Blower For Industrial Machine

Overview
Recommended Products

Product Details

Features:

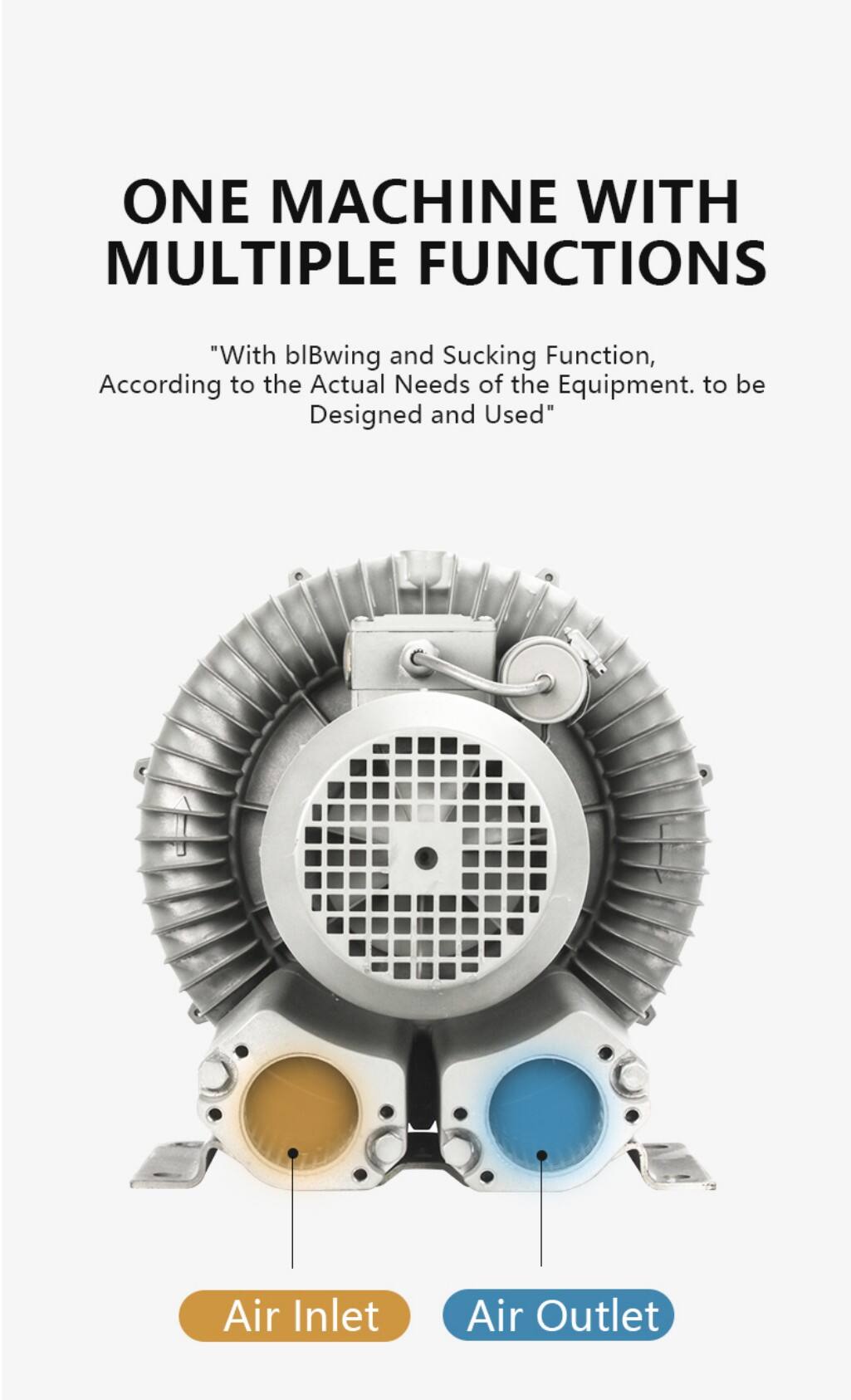

1.Centrifugal vanes make high pressure, great outflow and low noise.

2.High quality engine ensure safe and steady effect. Non-oil lubrication and pure compressed air. Phosphorize, regular coloring and adhesive strength.

3.Wide range of power, long life of this machine.

Note

The products must be put at dry and ventilated places abovewater level.

详情页1.jpg 详情页3.jpg

Technical Characteristics

Size (mm)
Model	L	W	H	A	D	H1	L1
XB-550	275	263	272	92	40	40	83
XB-750	275	263	272	92	40	40	83
XB-1100	302	287	305	113	50	48	96
XB-1500	360	328	338	120	60	48	140
XB-2200	348	350	370	124	60	58	140
XB-3000	415	365	390	126	60	60	140
XB-4000	448	375	400	126	60	60	140
XB-7500	470	445	466	145	75	65	172


Model	Voltage (V/Hz)	Rated Current (A)	Power (w)	Pressure (kPa)	Max.Vacuum (kPa)	Output (m/h)	Noise (kPa)	Weight (kg)	Dimensions (cm)
Model	Voltage (V/Hz)	Rated Current (A)	Power (w)	Pressure (kPa)	Max.Vacuum (kPa)	Output (m/h)	Noise (kPa)	Weight (kg)	Dimensions (cm)
XB-550	220/50	2.9	550	14	-13	85	<55	14.8	303131.5
XB-750	220/50	3.8	750	18	-15	110	<55	16.5	353234
XB-1100	220/50	4.9	1100	25	-21	145	<63	21	373538
XB-1500	220/50	8.6	1500	27	-24	210	<64	26.75	383639.5
XB-2200	380/50/60	5.2	2200	30	-35	230	<69	31	414143
XB-3000	380/50/60	7.3	3000	38	-35	318	<69	39.4	474446
XB-4000	380/50/60	9.3	4000	42	-35	380	<70	54	494648.5

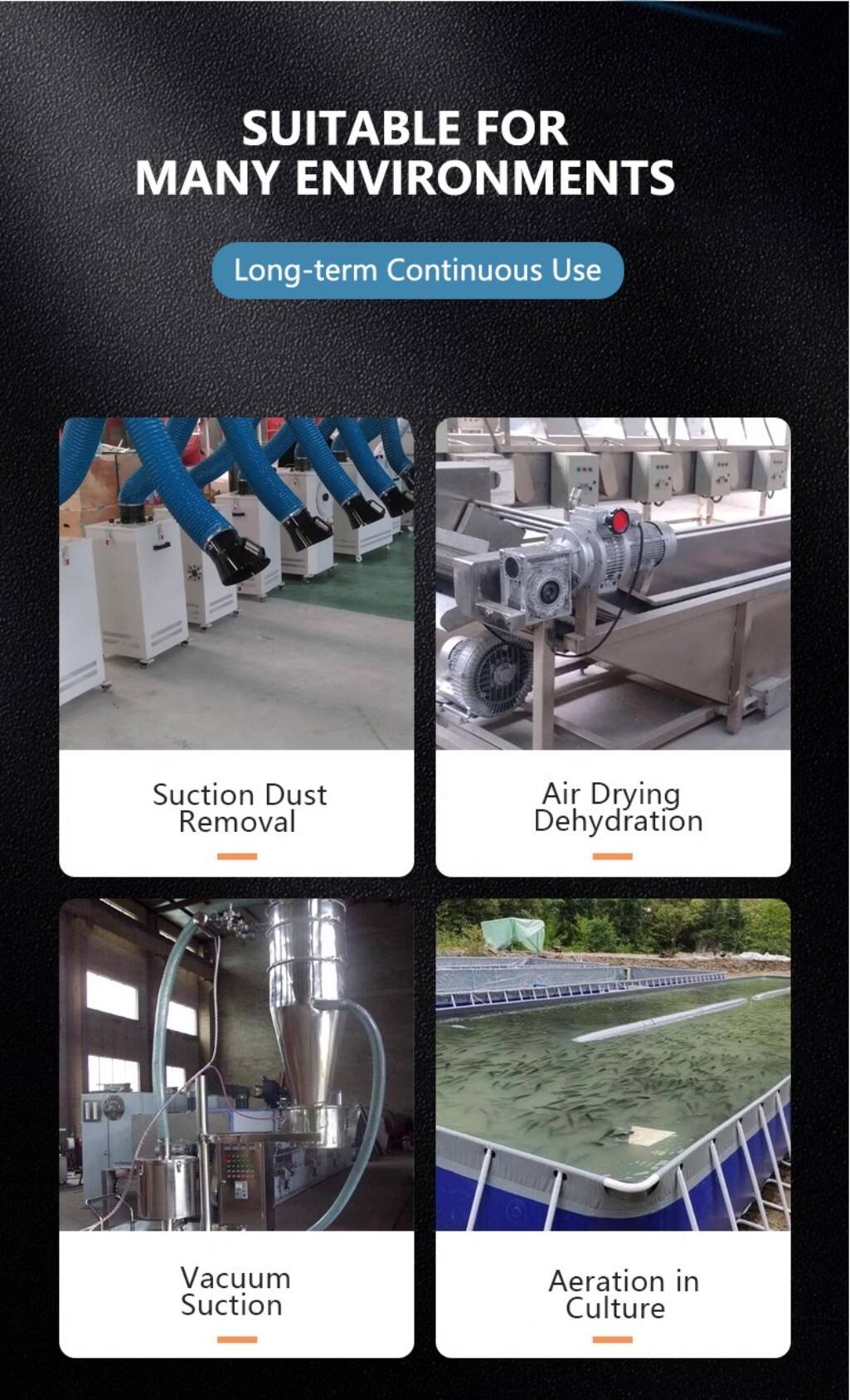

Application:

Tobe used in paper cutters, filter cigarette shapers, pulverizingdries, net printers, photo plate makers, liquid-canning machines, leectric welding equipment, film machinery, papertransborting, clothes dry-cleaning, rinsing, air cleaning, pneumatic conveying, material conveying, collection and so on.
